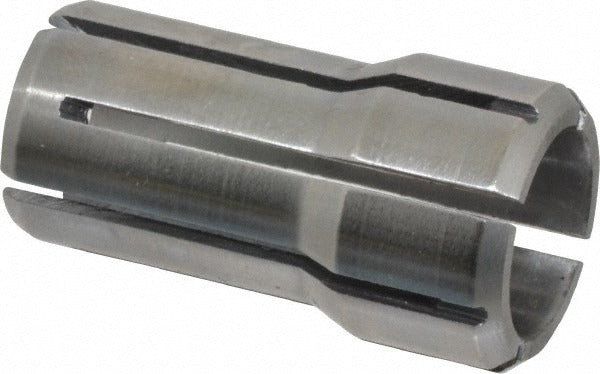

Parlec DA100-14MM Double Angle Collet DA100 0.5512in

Product Description

The PARLEC DA100-14MM is a double angle collet in the DA100 series, designed for use in CNC machining centers and milling applications that require precise workholding and tool holding. It accepts a 0.5512-inch (14.00 mm) shank diameter and measures 1.437 inches overall length with an overall diameter of 0.769 inches. Licensed machinists and toolroom technicians install this collet as part of a DA100 collet chuck system to securely grip cutting tools or workpieces during high-speed rotary machining operations. The double angle design distributes clamping force evenly across the gripping surface for consistent runout performance.

This collet is suited for residential shop, industrial, and production machining environments where a DA100-series collet chuck is mounted to a vertical or horizontal machining center spindle. It is a direct-fit component for any DA100 collet chuck that accepts a 14.00 mm bore. Typical applications include end mill holding, drill chucking, and general-purpose tool holding on CNC or manual milling equipment. Installation and changeover are performed by qualified machinists or tool crib personnel following standard toolholding procedures.

Key Features

• DA100 collet series for use with compatible DA100 collet chuck bodies
• 0.5512-inch (14.00 mm) bore diameter for precise shank engagement
• 1.437-inch overall length for standard DA100 chuck fitment
• 0.769-inch overall diameter consistent with DA100 series geometry
• Double angle construction distributes clamping load evenly across the collet bore

Compatibility

Designed as an OEM-style replacement or spare for DA100 collet chuck systems accepting a 14.00 mm bore collet. Specific chuck body compatibility is determined by the DA100 collet series standard.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Before inserting or removing the collet, ensure the machine spindle is fully stopped, the control is in an E-stop or locked-out state, and the drawbar or clamping nut is fully released. Use the correct DA100 collet wrench or spanner for tightening the collet nut to prevent galling or uneven seating. Inspect the collet bore and chuck taper for chips or debris before each installation.
