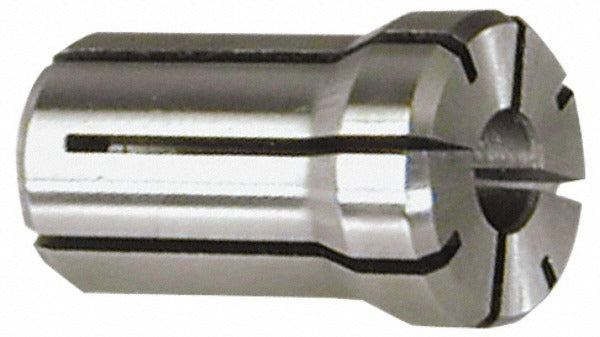

Parlec DA100-11.5MM Double Angle Collet DA100 11.5mm

Product Description

The PARLEC DA100-11.5MM is a double angle collet designed for use in DA100-series collet chucks on CNC machining centers, milling machines, and other rotating spindle equipment. It accepts a tool shank of 11.5 mm (0.4528 inches) and holds an overall length of 1.437 inches (36.50 mm) with an overall diameter of 0.769 inches. The double angle clamping geometry provides consistent radial grip and concentricity, making this collet a standard choice for production machining and toolroom applications. Machinists and CNC setup technicians install these collets as part of a toolholding assembly when precision runout control and repeatable tool changes are required.

This collet is intended for use in DA100 collet chucks across a range of machining environments, including job shops and production facilities running vertical and horizontal machining centers. It is suited for end mills, drills, reamers, and other round-shank cutting tools with a 11.5 mm shank diameter. The DA100 series is a widely adopted double angle collet standard, and this size fits within that system for facilities standardized on DA100 toolholding.

Key Features

• DA100 collet series double angle clamping design for consistent grip and concentricity
• 11.5 mm (0.4528 inch) bore accommodates standard round-shank cutting tools
• Overall length of 1.437 inches (36.50 mm) fits DA100 chuck depth specifications
• Overall diameter of 0.769 inches for proper seating in DA100 collet chucks
• Compact, precision-ground construction suited for production and toolroom use

Compatibility

Designed for use with DA100-series collet chucks that accept double angle collets with an 11.5 mm bore. Confirm chuck series and collet seat geometry before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Always power down and lock out the machine spindle before changing collets. Inspect the collet bore, taper surfaces, and chuck seat for chips or damage prior to assembly. Use the appropriate collet nut and torque wrench specified by the chuck manufacturer - do not over-tighten by hand or with improvised tools, as this can distort the collet taper and affect runout.
