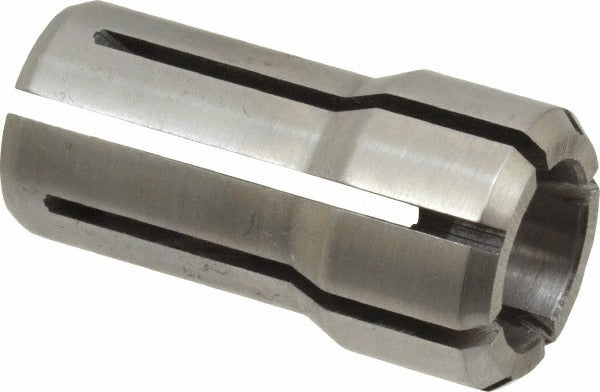

Parlec DA100-0500 Double Angle Collet DA100 1/2 Inch

Product Description

The PARLEC DA100-0500 is a Double Angle Collet in the DA100 series, sized for 1/2 inch tooling. It is designed to grip cutting tools and workholding shanks within CNC machining centers, milling machines, and similar rotating spindle equipment. The collet accepts shank diameters from 0.4844 inches minimum to 0.5000 inches maximum, with an overall length of 1.437 inches and an overall diameter of 0.769 inches. Installation and removal are performed by machinists and tool room technicians during tool changes or setup. The DA100 double angle design provides positive clamping force and accurate tool runout characteristics for precision milling and drilling operations.

This collet is suited for production machining environments where consistent tool holding and repeatable setup are required. It fits DA100-style collet chucks and holders commonly used in vertical and horizontal machining centers. Typical applications include end mill holding, drill holding, and light reaming in both job shop and high-volume production settings. The 1/2 inch capacity makes it a frequently stocked size for standard end mill shanks.

Key Features

• DA100 series double angle collet for secure, accurate tool clamping
• Accepts shank diameters from 0.4844 inches to 0.5000 inches
• Overall length of 1.437 inches for compact spindle projection
• Overall diameter of 0.769 inches for DA100 chuck fitment
• Designed for repeatable runout accuracy in milling and drilling operations

Compatibility

Designed as an OEM-style replacement and standard collet for DA100 series collet chucks and holders used in CNC milling and machining center applications.

Installation Notes

Installation is performed by machinists or tool room personnel during machine setup or tool change procedures. Power down and lock out the spindle before inserting or removing any collet. Ensure the collet bore, chuck body, and clamping nut are clean and free of chips or debris before seating the collet. Follow the machine tool manufacturer guidelines and applicable shop safety procedures when torquing the collet nut.
