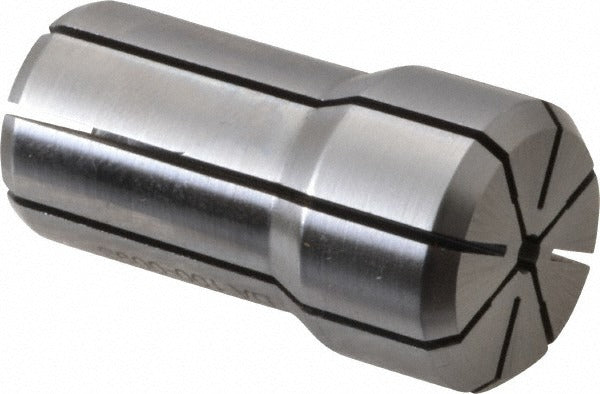

Parlec DA100-0093 Double Angle Collet DA100 3/32 in

Product Description

The PARLEC DA100-0093 is a Double Angle (DA) collet designed for use in DA100-series collet chucks on CNC machining centers, milling machines, and production drilling setups. It accepts round shank tooling with a capacity range of 0.0781 to 0.0938 inches, making it suitable for small-diameter end mills, drills, and reamers. The collet measures 1.437 inches in overall length and 0.769 inches in overall diameter. Manufactured to close tolerances, it provides consistent gripping force and repeatable tool runout for precision machining operations. Machinists and tooling technicians are the primary installers of this component.

This collet is used in metalworking and production machining environments where DA100-series toolholders are the standard. It fits residential machine shop applications as well as high-volume industrial production lines. The 3/32 inch nominal size targets small-diameter tooling used in detailed finishing passes, circuit board drilling, and fine feature machining. It is selected when tight tolerances and reliable tool retention are required at small cutting diameters.

Key Features

• DA100 collet series with double-angle gripping geometry for secure tool retention
• Capacity range of 0.0781 to 0.0938 inches accommodates 3/32 inch shank tooling
• Overall length of 1.437 inches for proper chuck seating and projection control
• Overall diameter of 0.769 inches fits standard DA100 chuck bores
• Precision-ground surfaces support repeatable runout performance

Compatibility

Designed as an OEM-style replacement or direct-fit collet for DA100-series collet chucks used in CNC milling, drilling, and production machining applications.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Always power down and lock out the machine spindle before inserting or removing collets. Clean the chuck bore and collet taper surfaces before seating to prevent runout caused by chips or debris. Do not over-torque the collet nut beyond the chuck manufacturer's specification; use the appropriate spanner wrench for proper seating.
