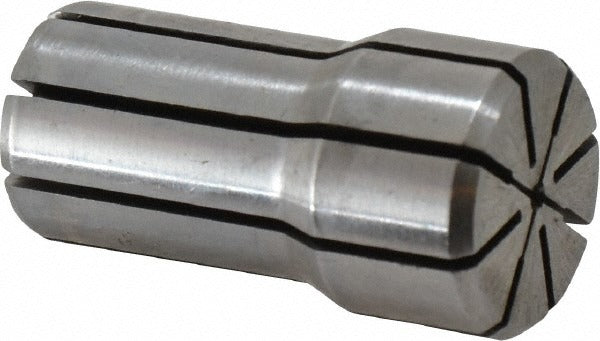

Parlec DA100-0062 Double Angle Collet DA100 1/16 in

Product Description

The PARLEC DA100-0062 is a Double Angle collet in the DA100 series, designed to hold round-shank tooling in milling, drilling, and light routing applications. It accepts tool shanks with a maximum capacity of 0.0625 inches (1/16 inch) and a minimum capacity of 0.0469 inches. The collet measures 1.437 inches in overall length and 0.769 inches in overall diameter. Precision-ground to tight tolerances, it provides secure, concentric clamping in DA100-compatible collet chucks. Licensed machinists and CNC setup technicians are the typical installers.

This collet is suited for production and toolroom environments running small-diameter end mills, drills, or reamers in CNC machining centers, knee mills, or drill presses equipped with DA100-series collet chucks. It is a practical choice for shops that run high-RPM spindles with small-shank tooling where runout control matters.

Key Features

• DA100 collet series for use with DA100-compatible collet chucks
• Maximum collet capacity of 0.0625 inches (1/16 inch) for small-diameter tooling
• Minimum collet capacity of 0.0469 inches
• Overall length of 1.437 inches for consistent tool projection
• Overall diameter of 0.769 inches
• Double angle design provides secure grip and reduced tool pullout under load

Compatibility

Designed for use with DA100-series collet chucks. Verify chuck series compatibility before installation. No additional specific model compatibility data was provided in the product listing.

Installation Notes

Installation is performed by qualified machinists or CNC technicians. Power down and lock out the spindle before inserting or removing collets. Use the appropriate collet nut and torque wrench designed for the DA100 chuck system - do not over-tighten by hand or use improvised tools. Inspect the collet bore and chuck taper for chips or damage before seating the collet.
