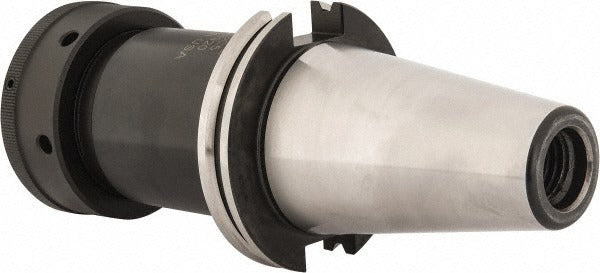

Parlec C50-15SC5 Collet Chuck CAT50 Tg PG150 Single Angle

Product Description

The PARLEC C50-15SC5 is a single-angle collet chuck designed for precision CNC machining applications. It accepts TG and PG150 series collets with a capacity range of 0.4844 inches to 1.5 inches, making it suitable for a wide variety of tooling diameters. The chuck mounts on a CAT50 taper shank and delivers a total indicator runout (TIR) of 0.0002 inches, supporting tight-tolerance milling, drilling, and reaming operations. Through-spindle coolant capability allows coolant delivery directly to the cutting zone. At 12 pounds and an overall length of 9.5 inches, this is a substantial toolholder built for production-grade machining centers.

This collet chuck is used in vertical and horizontal machining centers equipped with CAT50 spindles. The 5.5-inch projection provides clearance for deep-cavity work and fixtures where standard-projection holders would interfere with the workpiece or fixturing. It is installed and managed by CNC machinists, tool crib technicians, and setup technicians in job shop and production manufacturing environments. The TG and PG150 collet system is widely used where secure clamping force and repeatable tool runout are required across high-volume production runs.

Key Features

• Single-angle collet system compatible with TG and PG150 series collets
• CAT50 taper shank for use with standard CAT50 spindle interfaces
• Capacity range of 0.4844 inches to 1.5 inches covers a broad tooling diameter selection
• TIR of 0.0002 inches supports precision and tight-tolerance cutting operations
• 5.5-inch projection for extended reach into deep cavities and complex fixturing
• Through-spindle coolant delivery directs coolant to the cutting edge

Compatibility

Designed for use with TG and PG150 series single-angle collets on machining centers equipped with a CAT50 spindle interface.

Installation Notes

Installation should be performed by a qualified CNC machinist or tool room technician. Ensure the machining center spindle is fully stopped and the tool changer is disabled before mounting or removing the toolholder. Clean the CAT50 taper and spindle bore thoroughly before seating to maintain runout specifications. Follow the machine tool manufacturer torque specifications for the retention knob.
