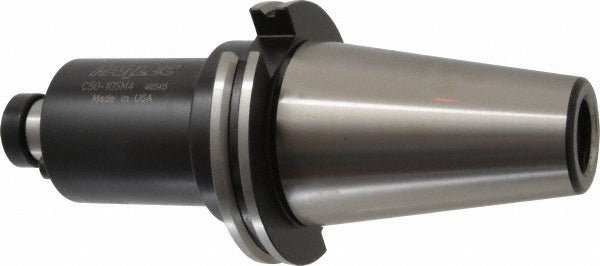

Parlec C50-10SM4 Shell Mill Holder CAT50 1 Inch Pilot

Product Description

The PARLEC C50-10SM4 is a CAT50 taper shank shell mill holder designed for secure face milling and shell mill operations on machining centers. It features a 1 inch pilot diameter and a 2.25 inch nose diameter, with a projection from flange to nose end of 4 inches. Balanced to 30,000 RPM, this holder suits high-speed spindle applications where runout control is critical. Total indicated runout (TIR) is rated at 0.0002 inches, supporting tight tolerances on finish milling passes. The lock screw thread is 1/2-20, using the included 10LS lock screw. Installation is performed by qualified machinists or CNC tooling specialists.

This shell mill holder is suited for use on CAT50-spindle VMCs and HMCs running shell mills in the 2.25 inch to 2.75 inch cutting diameter range. Typical applications include face milling of large flat surfaces on ferrous and non-ferrous workpieces in production and job-shop environments. The CAT50 taper provides the rigidity required for heavier depth-of-cut operations common in roughing and semi-finishing cycles. No through-coolant capability is present, so coolant delivery must be handled externally or via flood coolant at the work zone.

Key Features

• CAT50 taper shank for direct mount in CAT50-spindle machining centers
• 1 inch pilot diameter with 2.25 inch nose diameter for shell mill retention
• Balanced to 30,000 RPM for high-speed spindle compatibility
• TIR of 0.0002 inches for consistent runout control during finish milling
• 1/2-20 lock screw thread with 10LS lock screw included
• Accepts shell mills in the 2.25 inch to 2.75 inch cutting diameter range

Compatibility

Designed as an OEM-style shell mill holder for CAT50 taper spindle machining centers accepting shell mills with a 1 inch pilot bore and cutting diameters from 2.25 inches to 2.75 inches.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before mounting or removing the holder. Use a calibrated torque wrench on the lock screw to the machine and toolholder manufacturer specifications - do not overtighten or use impact tools. Verify runout at the pilot after assembly using a dial test indicator before commencing cuts.
