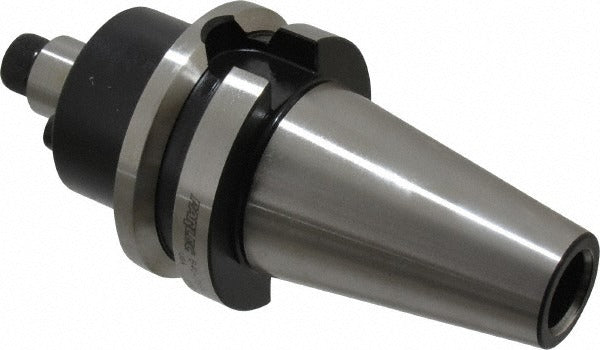

Parlec B40-75SM2 Shell Mill Holder BT40 0.75 Inch Pilot

Product Description

The PARLEC B40-75SM2 is a BT40 taper shank shell mill holder engineered for precision face milling and shell milling operations on CNC machining centers. It features a 0.75 inch pilot diameter and a 1.75 inch nose diameter, with a projection from flange to nose end of 2.0 inches. Through-spindle coolant delivery keeps cutting zones flooded during operation, extending tool life and improving chip evacuation. The holder is balanced to 30,000 RPM, making it suitable for high-speed spindle applications where runout control is critical. Total Indicated Runout (TIR) is rated at 0.0002 inches. Note: through-coolant operation requires Parlec 028-192C, sold separately. A licensed machinist or CNC setup technician installs this holder.

This shell mill holder is intended for use with CNC vertical or horizontal machining centers equipped with a BT40 spindle interface. It accommodates shell mill cutting diameters ranging from 1.75 to 2 inches, making it appropriate for medium-diameter face milling in production and job-shop environments. The lock screw thread size is 3/8-24. Both through-coolant and standard dry cutting setups benefit from the high-balance rating, and the holder is a fit for shops running aluminum, steel, and similar materials at elevated spindle speeds.

Key Features

• BT40 taper shank for direct spindle mounting on compatible CNC machining centers
• 0.75 inch pilot diameter accepts shell mills in the 1.75 to 2 inch cutting diameter range
• Through-spindle coolant delivery for improved chip evacuation and tool life (requires Parlec 028-192C)
• Balanced to 30,000 RPM for high-speed spindle compatibility
• TIR of 0.0002 inches for tight runout control and consistent surface finish
• 3/8-24 lock screw thread for secure shell mill retention

Compatibility

Designed for CNC machining centers with a BT40 spindle taper. Accepts shell mills with a 0.75 inch pilot and cutting diameters from 1.75 to 2 inches. Through-coolant function requires Parlec 028-192C coolant-through adapter.

Installation Notes

Installation should be performed by a qualified CNC machinist or setup technician. Power down and lock out the machining center before mounting or removing the holder from the spindle. Use a calibrated torque wrench and the appropriate BT40 retention knob rated for your spindle draw bar. Verify TIR with a dial test indicator after seating the holder to confirm runout is within specification before beginning any cut.
