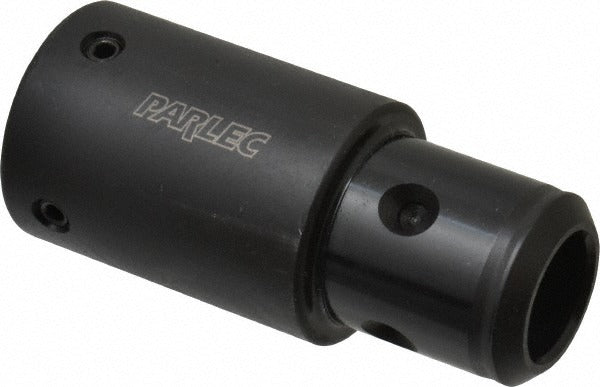

Parlec 7717-100 Tapping Adapter 1 Inch Pipe

Product Description

The PARLEC 7717-100 is a quick-change tapping adapter designed for pipe thread tapping operations in CNC and production machining environments. It accepts a 1-inch pipe tap with a 1.125-inch tap shank diameter and a 0.843-inch tap square size, providing a secure, rigid connection between the machine spindle and the tap. The outside shank diameter measures 1.25 inches, and the adapter projects 2.25 inches. This adapter belongs to the NUMERTAP 770 Series, a system engineered for reliable, repeatable tapping performance in high-volume shop settings. Coolant-through capability is not available on this model.

The 7717-100 is suited for use in vertical and horizontal machining centers, CNC lathes, and drill presses where pipe thread tapping is a regular operation. The quick-change interface allows the operator to swap taps without removing the holder from the spindle, reducing cycle time on multi-tap jobs. It is appropriate for production tapping of 1-inch pipe threads in ferrous and non-ferrous workpieces. Machinists and toolroom professionals working with the NUMERTAP 770 Series tooling system will find this adapter a direct fit within that platform.

Key Features

• Quick-change interface for fast tap swaps without spindle removal
• Accepts 1-inch pipe taps with 1.125-inch tap shank diameter
• 0.843-inch tap square size for positive drive engagement
• 1.25-inch outside shank diameter for stable spindle fit
• 2.25-inch projection for clearance in standard pipe tapping applications
• Part of the NUMERTAP 770 Series quick-change tapping system

Compatibility

Designed for use within the PARLEC NUMERTAP 770 Series quick-change tapping system. Accepts taps with a 1-inch pipe tap size, 1.125-inch shank diameter, and 0.843-inch square drive.

Installation Notes

Installation should be performed by a qualified machinist familiar with quick-change tooling systems. Verify that the machine spindle and collet chuck are compatible with the 1.25-inch outside shank diameter before mounting. Power down and lock out the machine spindle before inserting or removing the adapter. Confirm proper tap square engagement and secure retention before initiating a tapping cycle.
