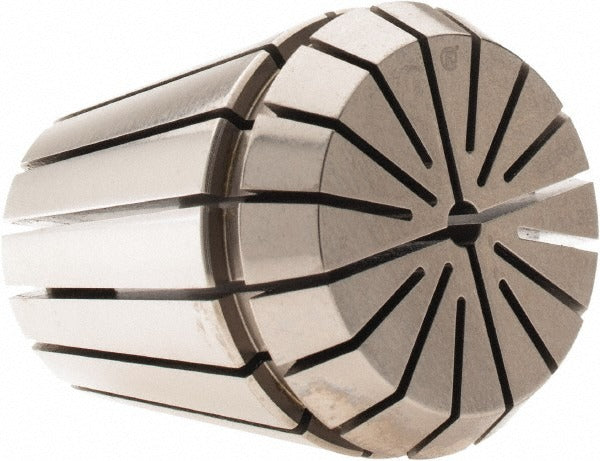

Parlec 5UMER32-0125 ER32 Collet 0.125 Inch

Product Description

The PARLEC 5UMER32-0125 is an ER32 series collet designed for precision workholding in CNC machining and milling applications. It accepts a nominal clamping diameter of 0.125 inches (1/8 inch) with a minimum collet capacity of 0.086 inches, giving machinists flexibility when gripping small-diameter tooling. Total indicator runout (TIR) is held to 0.0002 inches, supporting tight tolerances on finishing and drilling operations. Overall length is 1.574 inches. This collet is installed and serviced by machining technicians and tool room personnel working with ER32-compatible spindles and tool holders.

The 5UMER32-0125 is suited for use in vertical machining centers, CNC mills, and manual milling machines equipped with ER32 collet chucks or tool holders. It is a standard choice for gripping end mills, drills, reamers, and taps in the 1/8 inch shank range. Applications span precision job shops, production machining, and toolroom environments where consistent runout and repeatable tool-to-tool setup are required.

Key Features

• ER32 series collet, compatible with ER32 collet chucks and holders
• 0.125 inch nominal clamping diameter with 0.086 inch minimum capacity
• 0.0002 inch TIR for precision machining applications
• 1.574 inch overall length for standard ER32 tooling setups
• Lightweight at 0.38 pounds for easy handling during tool changes

Compatibility

Designed for use with ER32-compatible collet chucks and tool holders accepting the ER32 collet series.

Installation Notes

Installation is performed by qualified machining technicians familiar with ER collet systems. Before installing or removing the collet, ensure the machine spindle is fully stopped and locked out per shop lockout/tagout procedures. Seat the collet into the nut before threading onto the holder, and tighten using a proper ER collet wrench to the chuck manufacturer's specified torque range. Inspect the collet bore and seating surfaces for chips or damage before each use to maintain TIR performance.
