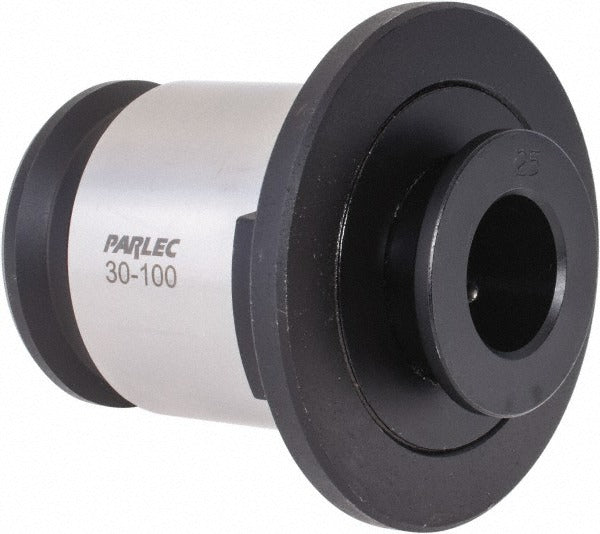

Parlec 30-100 Tapping Adapter 1 in Tap Numertap 300

Product Description

The PARLEC 30-100 is a quick-change tapping adapter designed for use with the NUMERTAP 300 series tooling system. It accepts a 1-inch tap with a tap shank diameter of 0.8 inches and a tap square size of 0.6 inches. The adapter features a flange diameter of 2.83 inches and an outside shank diameter of 1.89 inches, with a projection of 1.77 inches. This adapter is installed by machinists and CNC operators working with tapping attachments in production and job-shop environments where repeatable, quick-change tooling setups are required.

The PARLEC 30-100 is suited for use in CNC machining centers and tapping machines where the NUMERTAP 300 series quick-change system is in use. It accommodates a No. 3 tap adapter size and is appropriate for applications involving 1-inch tap sizes in ferrous and non-ferrous materials. This adapter fits into production workflows that demand fast tap changes without full spindle teardown, reducing setup time on multi-tap operations.

Key Features

• Quick-change interface for fast tap swaps within the NUMERTAP 300 system
• Accepts 1-inch tap size with a 0.8-inch tap shank diameter
• Tap square size of 0.6 inches for positive drive engagement
• Flange diameter of 2.83 inches and outside shank diameter of 1.89 inches
• 1.77-inch projection for clearance in standard tapping setups
• No coolant-through design - suited for flood or mist coolant applications

Compatibility

Designed for use with the NUMERTAP 300 series quick-change tapping system, accepting a No. 3 tap adapter size and a 1-inch tap.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before mounting or removing tapping adapters. Verify that the tap shank diameter and square size match the adapter specifications before seating the tap. Follow the machine tool manufacturer's torque and retention procedures for the NUMERTAP 300 system interface.
