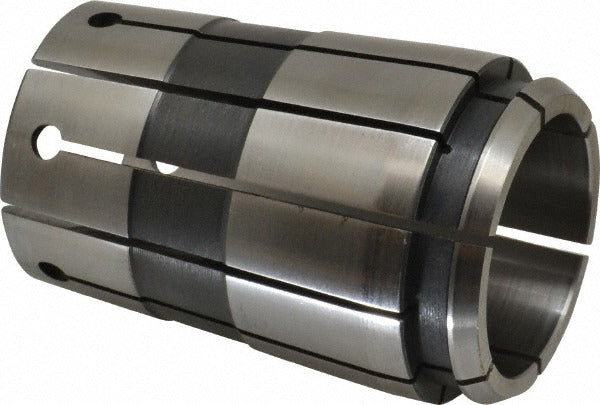

Parlec 150PG-1500 Tg Pg 150 Collet 1.5 Inch

Product Description

The PARLEC 150PG-1500 is a standard single angle collet designed for use with TG/PG 150 collet systems in precision machining applications. This collet accepts a 1.5-inch round workpiece or cutting tool shank and features a total indicated runout (TIR) of 0.0005 inches, supporting accurate, repeatable tool holding in CNC mills, machining centers, and manual knee mills. With a body diameter of 2.001 inches and an overall length of 3 inches, it fits standard TG/PG 150 collet chucks and nuts. Installation and use is typical for machinists and CNC setup technicians working in production and job shop environments.

This collet is suited for production machining, tool room work, and CNC machining centers where TG/PG 150 tooling is already in use. The 1.5-inch capacity covers a range of common end mill shanks and round stock sizes used in milling operations. It is compatible with standard TG/PG 150 collet chucks and matching collet nuts available from PARLEC and other tooling suppliers that conform to the TG/PG 150 system specification.

Key Features

• TG/PG 150 collet series - fits standard TG/PG 150 chuck bodies and collet nuts
• 1.5-inch bore capacity for common shank sizes
• 0.0005-inch TIR for consistent, low-runout tool holding
• 2.001-inch body diameter matches TG/PG 150 system dimensions
• 3-inch overall length for proper seating depth in the chuck
• Single angle collet design provides secure clamping under load

Compatibility

Designed as an OEM-style replacement and standard-fit collet for TG/PG 150 collet chuck systems requiring a 1.5-inch bore capacity.

Installation Notes

Installation is performed by machinists or CNC setup technicians. Always power down and lock out the machine spindle before changing collets. Inspect the collet bore, taper, and chuck body for chips or burrs before seating the collet, as contamination directly affects TIR. Torque the collet nut using the appropriate spanner wrench per the chuck manufacturer specification - do not use makeshift tooling on precision collet systems.
