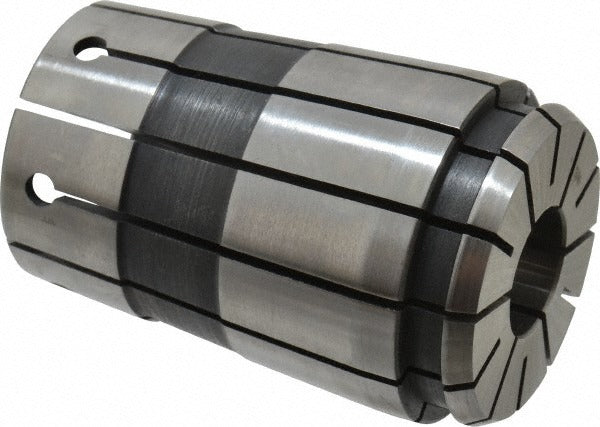

Parlec 150PG-0750 Tg Pg 150 Single Angle Collet 0.75 in

Product Description

The PARLEC 150PG-0750 is a standard single angle collet designed for use with TG/PG 150 collet chucks in precision CNC machining and toolholding applications. It accepts a 0.75 inch tool shank and delivers a total indicator runout (TIR) of 0.0005 inches, providing the tight concentricity required for accurate material removal and extended tool life. With a body diameter of 2.001 inches and an overall length of 3 inches, this collet is built to OEM dimensional standards. Machinists and toolroom technicians install it as part of a TG/PG 150 toolholding system on milling machines and machining centers.

This collet is suited for production machining environments where consistent gripping force and low runout are critical. The TG/PG 150 collet series is a widely used standard in both vertical and horizontal machining center setups, accommodating end mills, drills, reamers, and other straight-shank cutting tools with a 0.75 inch shank diameter. It is appropriate for both job shop and high-volume production use where repeatable tool positioning is required.

Key Features

• 0.75 inch bore accepts standard straight-shank cutting tools
• TIR of 0.0005 inches ensures precise concentricity and reduced tool runout
• Body diameter of 2.001 inches conforms to TG/PG 150 series dimensional standards
• Overall length of 3 inches provides consistent gage-line positioning
• Standard single angle design for compatibility with TG/PG 150 collet chucks

Compatibility

Designed for use with TG/PG 150 series collet chucks. Accepts straight-shank tooling with a 0.75 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Before inserting or removing the collet, ensure the spindle is fully stopped and locked out per applicable machine safety procedures. Use the appropriate spanner wrench and collet nut for the TG/PG 150 system. Inspect the collet bore and chuck taper for chips, wear, or contamination before seating the collet to maintain specified TIR.
