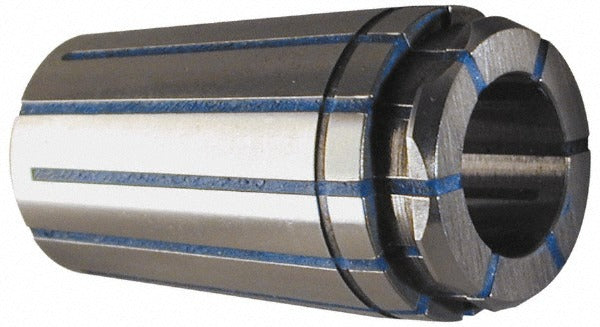

Parlec 100RPG-1000 Coolant Single Angle Collet Tg/pg 100

Product Description

The PARLEC 100RPG-1000 is a coolant single angle collet designed for use in TG/PG 100 series collet chucks. It accepts a 1.0000-inch tool shank and delivers coolant directly through the collet body to the cutting zone, improving chip evacuation and extending tool life in demanding machining operations. The collet holds a maximum body diameter of 1.3790 inches and an overall length of 2.375 inches. Total indicator runout (TIR) is rated at 0.0005 inches, supporting close-tolerance work across a range of materials and cutting conditions. This collet is installed and serviced by machinists and toolroom technicians working with CNC machining centers and manual machines equipped with TG/PG 100 toolholding systems.

This collet is suited for production machining environments where through-coolant delivery is required at the cutting tool. It fits TG/PG 100 collet chucks and is appropriate for milling, drilling, and reaming operations where coolant pressure and precise runout control are critical. The rated coolant pressure for this collet is 600 psi, making it compatible with standard high-pressure coolant systems found on CNC machining centers in both job shop and production facility settings.

Key Features

• Through-coolant design delivers fluid directly to the cutting edge at up to 600 psi
• TIR of 0.0005 inches supports close-tolerance and finish machining applications
• 1.0000-inch collet bore accommodates standard round-shank tooling
• Maximum body diameter of 1.3790 inches fits TG/PG 100 chuck bodies
• Overall length of 2.375 inches provides consistent tool projection and setup repeatability
• Single angle collet design for reliable clamping and concentricity

Compatibility

Designed for use with TG/PG 100 series collet chucks requiring a 1.0000-inch bore coolant collet rated to 600 psi.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Before changing collets, disengage the spindle and confirm the machine is in a safe, powered-down state per the machine tool manufacturer's lockout/tagout procedure. Use the appropriate collet wrench or spanner specified for TG/PG 100 chucks - do not use pipe wrenches or substitutes that can damage the collet or chuck body. Verify coolant line connections and system pressure settings before resuming cutting operations.
