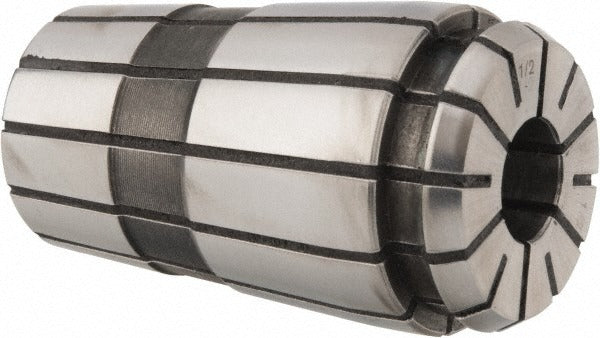

Parlec 100RPG-0500 Coolant Single Angle Collet Tg/pg 100

Product Description

The PARLEC 100RPG-0500 is a coolant single angle collet designed for use with TG/PG 100 series toolholding systems. It accepts a 0.5 inch (1/2 inch) tool shank and delivers coolant directly through the collet to the cutting zone, improving chip evacuation and extending tool life in demanding machining operations. With a total indicator runout (TIR) of 0.0005 inches and a maximum body diameter of 1.379 inches, this collet maintains tight tolerances that precision CNC applications require. It is installed by machinists and toolroom technicians working with TG/PG 100 collet chucks.

This collet is suited for CNC machining centers, vertical mills, and horizontal mills equipped with TG/PG 100 compatible collet chucks. The through-coolant design supports high-pressure coolant delivery up to 600 psi, making it appropriate for deep-pocket milling, drilling, and reaming operations where flood coolant does not adequately reach the cutting edge. It is commonly used in production environments where tool life and surface finish consistency are critical.

Key Features

• Through-coolant design supports up to 600 psi coolant pressure
• 0.5 inch collet bore accepts standard 1/2 inch shank tooling
• TIR of 0.0005 inches for high-precision runout control
• Maximum body diameter of 1.379 inches fits TG/PG 100 chucks
• Overall length of 2.375 inches provides consistent gage-line projection

Compatibility

Designed for use with TG/PG 100 series collet chucks that support through-coolant single angle collets.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before changing collets, de-energize the machine, bring the spindle to a full stop, and follow the machine tool manufacturer's torque and clamping procedures for TG/PG 100 toolholders. Verify that the coolant supply pressure does not exceed the rated 600 psi for this collet. Inspect the collet bore and seating surfaces for debris or damage before assembly to maintain TIR specifications.
