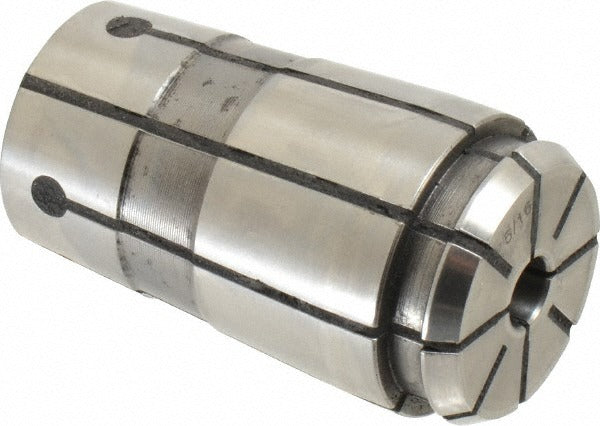

Parlec 100RPG-0312 Coolant Collet Tg/pg 100 5/16 Inch

Product Description

The PARLEC 100RPG-0312 is a coolant single angle collet designed for use with TG/PG 100 series toolholding systems. It accepts a 5/16-inch (0.3125-inch) bore and delivers a total indicator runout (TIR) of 0.0005 inches, supporting tight tolerances on precision machining operations. The collet has an overall length of 2.375 inches and a maximum body diameter of 1.379 inches. It is rated for coolant delivery at up to 600 psi, making it suitable for through-spindle coolant applications. Machinists and toolroom technicians install this collet into compatible TG/PG 100 chucks to secure round-shank cutting tools while directing coolant directly to the cutting zone.

This collet is used in CNC machining centers, mills, and production tooling setups where through-coolant capability is required. The TG/PG 100 series is a widely used precision collet system in both job shop and production environments. The 5/16-inch bore size makes it appropriate for end mills, drills, and reamers with matching shank diameters. It fits applications where coolant-through toolholding is specified to extend tool life and manage heat at the cutting edge.

Key Features

• Through-coolant design rated to 600 psi for direct cutting zone delivery
• TIR of 0.0005 inches for precision runout control
• 5/16-inch (0.3125-inch) bore accommodates standard round-shank tooling
• Overall length of 2.375 inches with a 1.379-inch maximum body diameter
• Compatible with TG/PG 100 series collet chucks

Compatibility

Designed for use with TG/PG 100 series collet chucks that support coolant-through toolholding. Accepts 5/16-inch round-shank cutting tools.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with TG/PG collet systems. Ensure the spindle is fully stopped and the machine is powered down before changing collets. Clean the chuck bore and collet surfaces before seating to prevent runout from debris. Torque the chuck nut according to the chuck manufacturer's specifications - do not use impact tools on precision toolholding components.
