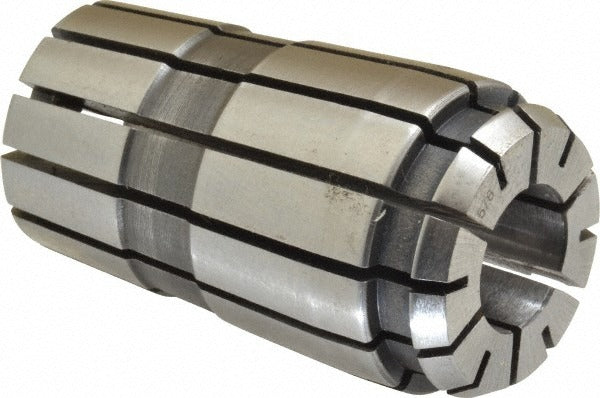

Parlec 100PG-0625 TG100 PG100 Standard Single Angle Collet

Product Description

The PARLEC 100PG-0625 is a standard single angle collet designed for TG100 and PG100 toolholding systems used in precision machining operations. With a collet size of 0.625 inches and a total indicator runout (TIR) of 0.0005 inches, this collet delivers the concentricity required for milling, drilling, and tapping applications where accuracy is critical. The overall length is 2.375 inches with a maximum body diameter of 1.379 inches. It is installed by machinists and toolroom technicians in CNC and manual machine tool setups where reliable clamping and low runout are essential.

This collet is suited for use in production machining and toolroom environments running TG100 or PG100 collet chucks. It accepts 5/8 inch round shank tooling, making it compatible with a wide range of end mills, drills, reamers, and taps at that shank size. Applications include both high-volume production runs and precision one-off work where consistent tool grip and minimal vibration are required.

Key Features

• 0.625 inch collet bore for standard 5/8 inch shank tooling
• TIR of 0.0005 inches for high-precision concentricity
• Compatible with TG100 and PG100 collet chuck systems
• Overall length of 2.375 inches with 1.379 inch maximum body diameter
• Single angle design for secure, even clamping force

Compatibility

Designed for use with TG100 and PG100 collet chuck systems. Accepts 5/8 inch round shank tooling.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. The machine spindle must be fully stopped and the drawbar released before inserting or removing the collet. Use the appropriate collet nut and torque wrench per the chuck manufacturer guidelines. Inspect the collet bore and chuck taper for chips or contamination before assembly to maintain TIR performance.
