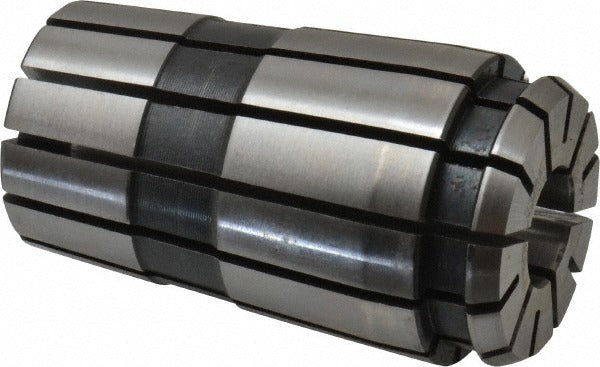

Parlec 100PG-0515 Tg/pg 100 Standard Single Angle Collet

Product Description

The PARLEC 100PG-0515 is a standard single angle collet in the TG/PG 100 series, designed for precision workholding in CNC machining and toolholding applications. It accepts a collet size of 0.5156 inches (33/64 inch) and delivers a total indicator runout (TIR) of 0.0005 inches, supporting tight-tolerance operations. The overall length is 2.375 inches with a body diameter of 1.379 inches. This collet is installed by machinists and toolroom technicians in production and job-shop environments where repeatable gripping accuracy is required.

The 100PG-0515 is suited for use in TG/PG 100 series collet chucks and holders. It is a common choice in milling, drilling, reaming, and tapping setups on vertical and horizontal machining centers where the TG/PG 100 toolholding system is in use. Its standard single angle design is appropriate for general-purpose production machining in both light and moderate-duty cutting conditions.

Key Features

• TG/PG 100 collet series for compatibility with standard TG/PG 100 holders
• 0.5156 inches (33/64 inch) collet bore size for precise tool gripping
• 0.0005 inches TIR for tight runout tolerance in precision machining
• 1.379 inches body diameter conforming to TG/PG 100 series dimensions
• 2.375 inches overall length for standard projection in toolholding assemblies
• Standard single angle design for general-purpose workholding and toolholding use

Compatibility

Designed for use with TG/PG 100 series collet chucks and toolholders. Verify that the holder accepts the TG/PG 100 collet series and confirm bore size requirements before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before changing collets, ensure the machine spindle is fully stopped and the toolholder is removed from the machine or properly secured. Use the appropriate collet nut wrench and spanner for the TG/PG 100 system - do not use improvised tools that could damage the collet seat or nut threads. Inspect the collet bore and holder taper for chips, burrs, or wear before seating the collet.
