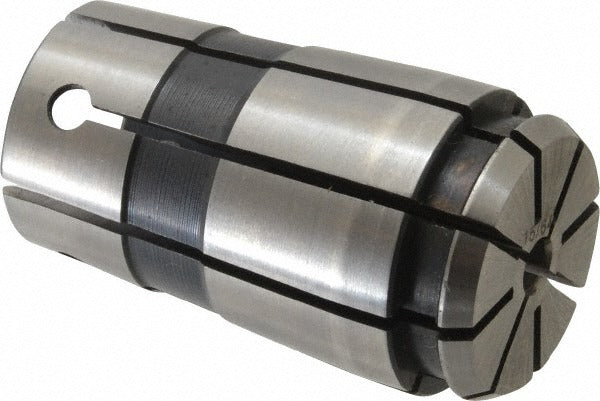

Parlec 100PG-0234 TG100 PG100 Single Angle Collet

Product Description

The PARLEC 100PG-0234 is a standard single angle collet designed for use in TG100 and PG100 collet chucks. It holds workpieces or cutting tools with a bore size of 0.2344 inches (15/64 inch) and delivers a total indicator runout (TIR) of 0.0005 inches, making it suitable for precision machining applications. The collet measures 2.375 inches in overall length and features a maximum body diameter of 1.379 inches. It is installed by machinists and toolroom technicians in CNC and manual milling, drilling, and tapping setups where accurate tool holding is required.

This collet is intended for use in TG100 and PG100 collet chuck systems, a widely used standard in production machining environments. Typical applications include milling, drilling, reaming, and tapping operations where repeatable tool runout control is critical. The 0.2344 inch bore accommodates round shank tooling at the 15/64 inch nominal size. It is well suited for both job shop and production floor use in light to medium-duty machining centers.

Key Features

• TG100 and PG100 series compatibility for broad chuck system fitment
• 0.2344 inch (15/64 inch) bore size for precise round shank tooling
• 0.0005 inch TIR for controlled runout in precision machining
• 1.379 inch maximum body diameter for proper chuck seating
• 2.375 inch overall length for standard reach in TG100 PG100 chucks

Compatibility

Designed for use with TG100 and PG100 series collet chucks as a standard single angle collet replacement or addition.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. The collet must be clean and free of chips or debris before seating in the chuck body to ensure accurate runout. Power to the spindle must be locked out before changing collets per standard lockout tagout procedures. Inspect the collet bore and taper surfaces for wear or damage before use.
