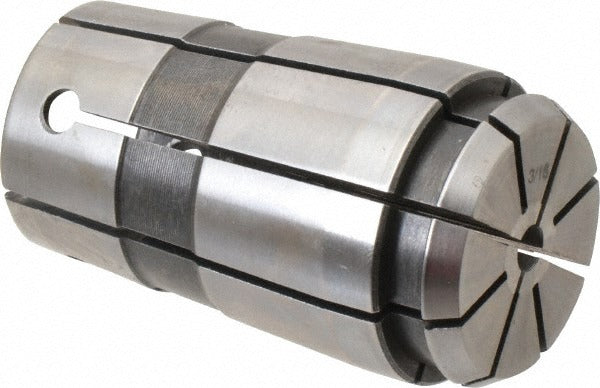

Parlec 100PG-0187 Tg/pg 100 Single Angle Collet 3/16

Product Description

The PARLEC 100PG-0187 is a standard single angle collet designed for use with TG/PG 100 collet chucks in precision CNC machining and toolholding applications. Built to TG/PG 100 series specifications, it accepts a 0.1875 inch (3/16 inch) tool shank and delivers a total indicated runout (TIR) of 0.0005 inches, supporting tight-tolerance cutting operations. The collet measures 2.375 inches in overall length with a maximum body diameter of 1.379 inches. It is intended for installation and use by machinists and toolroom technicians working with compatible TG/PG 100 toolholding systems.

This collet is suited for precision machining environments including milling, drilling, and reaming operations where consistent tool grip and low runout are required. The TG/PG 100 collet series is commonly found in production and job shop settings running vertical and horizontal machining centers. Applications include light to medium-duty cutting with 3/16 inch shank tooling such as end mills, drills, and reamers.

Key Features

• TG/PG 100 series collet - direct fit for compatible TG/PG 100 chuck bodies
• 0.1875 inch (3/16 inch) bore for standard shank tooling
• 0.0005 inch TIR for high-precision toolholding and repeatability
• 1.379 inch maximum body diameter machined to series specification
• 2.375 inch overall length provides standard projection geometry
• Single angle collet design ensures uniform clamping force around the tool shank

Compatibility

Designed as an OEM-style replacement and standard fitment collet for TG/PG 100 series collet chuck systems accepting 0.1875 inch shank tooling.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is powered down before changing collets. Inspect the collet bore and chuck taper for chips, burrs, or contamination before seating - debris will negatively affect TIR and clamping integrity. Do not exceed the chuck manufacturer's recommended torque range when tightening the collet nut.
