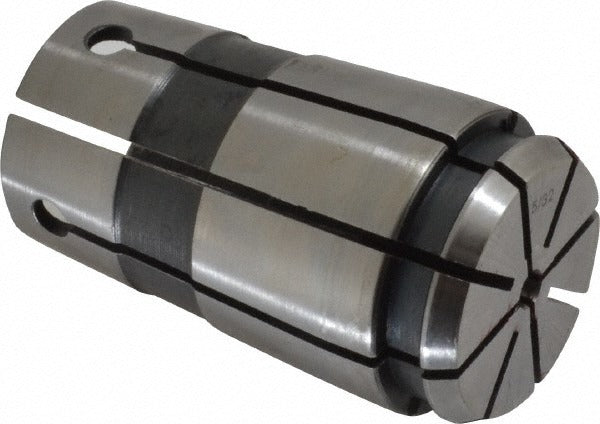

Parlec 100PG-0156 TG100 PG100 Standard Collet 5/32

Product Description

The PARLEC 100PG-0156 is a standard single angle collet designed for use in TG100 and PG100 collet chucks on CNC machining centers and milling machines. It accepts a 0.1563 inch (5/32 inch) tool shank and holds a total indicated runout (TIR) of 0.0005 inches, delivering the accuracy required for precision boring, drilling, and end mill operations. The body diameter measures 1.379 inches with an overall length of 2.375 inches. This collet is installed by machinists and toolroom technicians as part of a quick-change or standard toolholding setup.

This collet is suited for production machining environments where consistent grip and low runout are critical. It fits TG100 and PG100 series collet chucks and is appropriate for use with 5/32 inch shank cutting tools including drills, end mills, and reamers. Both job shop and high-volume production settings use this collet series for its broad range of available sizes and interchangeability within the TG100 and PG100 platforms.

Key Features

• 0.0005 inch TIR for precise tool concentricity
• Accepts 0.1563 inch (5/32 inch) tool shanks
• Compatible with TG100 and PG100 collet chuck systems
• 1.379 inch body diameter and 2.375 inch overall length
• Standard single angle design for straightforward chuck engagement

Compatibility

Designed for use with TG100 and PG100 series collet chucks accepting 0.1563 inch (5/32 inch) shank tooling.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Ensure the spindle and chuck are fully de-energized and at a complete stop before changing collets. Clean the chuck bore and collet taper surfaces before seating to maintain runout accuracy. Follow the machine tool manufacturer torque guidelines for the chuck nut when securing the collet.
