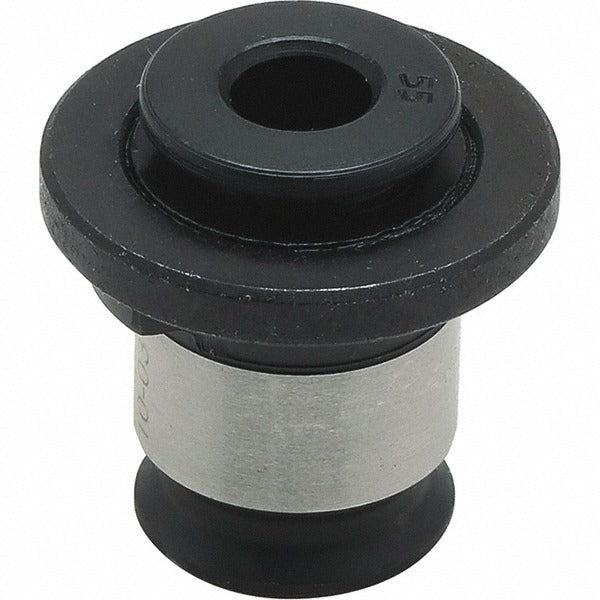

Parlec 10-0-6 Tapping Adapter Size 1 Numertap 100

Product Description

The PARLEC 10-#0-6 is a quick-change tapping adapter designed to hold taps ranging from size #0 through #6 in NUMERTAP 100 series tooling systems. It accepts a tap shank diameter of 0.141 inches and a tap square size of 0.110 inches, providing a secure, repeatable drive connection during tapping operations. The adapter features a flange diameter of 1.18 inches and an outside shank diameter of 0.75 inches, with a projection of 0.28 inches. Machinists and CNC operators install this adapter in production tapping setups where fast tool changes and consistent tap alignment are critical to cycle time and thread quality.

This adapter is suited for use in machine shops running CNC machining centers, drill presses, or tapping machines where small-diameter taps are used on ferrous and non-ferrous materials. The quick-change interface allows operators to swap taps without removing the entire holder from the spindle, reducing setup time in high-volume production environments. Coolant-through capability is not included in this adapter. It is sized specifically for Adapter Size 1 within the NUMERTAP 100 series.

Key Features

• Quick-change interface for fast tap swaps without full holder removal
• Accepts taps from size #0 through #6
• Tap shank diameter: 0.141 inches
• Tap square size: 0.110 inches
• Flange diameter of 1.18 inches with 0.75-inch outside shank diameter
• Part of the NUMERTAP 100 series tooling system

Compatibility

Designed for use with NUMERTAP 100 series quick-change tapping systems, Adapter Size 1, compatible with #0 through #6 taps having a 0.141-inch shank diameter and 0.110-inch square drive.

Installation Notes

Installation is performed by machinists or tooling technicians familiar with quick-change tapping systems. Ensure the tapping head and spindle are fully stopped and de-energized before inserting or removing the adapter. Verify that the tap shank and square dimensions match the adapter specifications before securing the tap to prevent drive slippage or tap breakage. Follow the machine tool manufacturer guidelines for torque and speed settings appropriate to the tap size and workpiece material.
