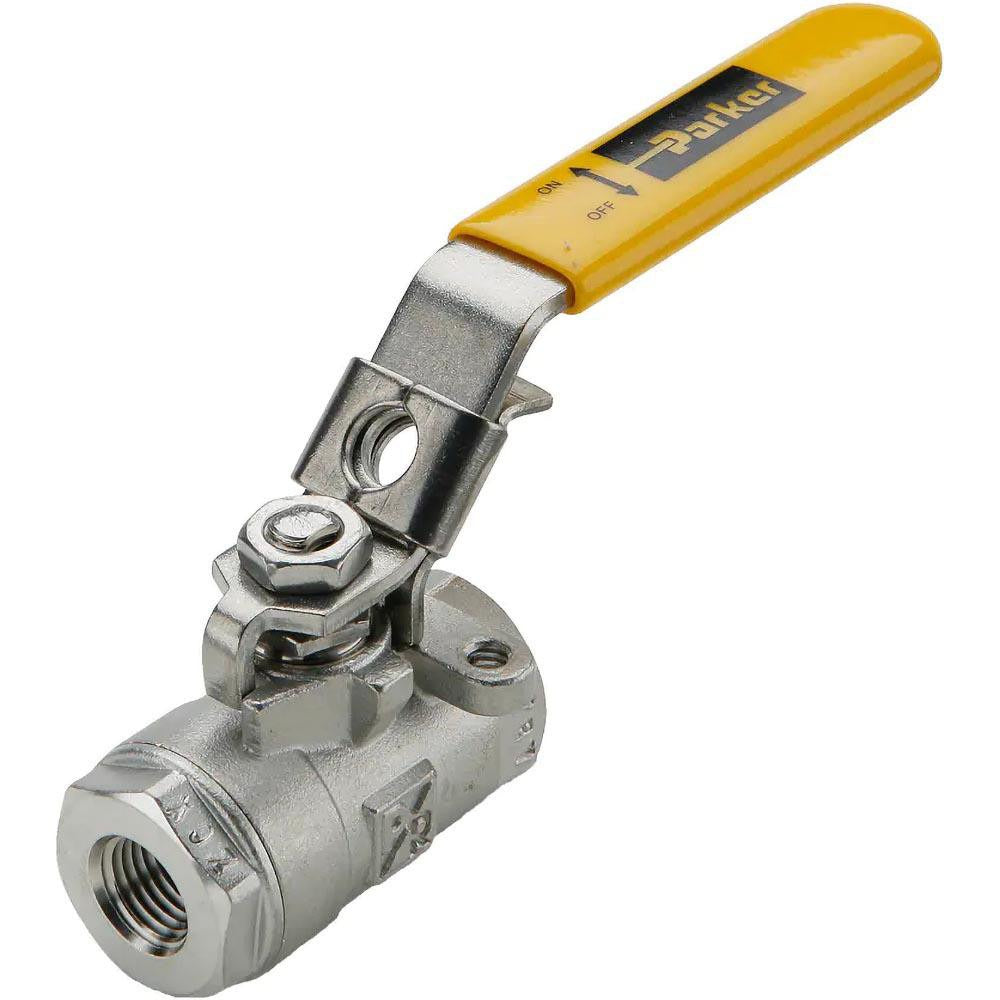

Parker XVP502SS-12 Ball Valve 3/4 in Fnpt 600 Psi Ss

Product Description

The PARKER XVP502SS-12 is a standard manual ball valve rated for 3/4-inch pipe in a full-port, FNPT x FNPT configuration. The body and trim are constructed from 316 stainless steel, making it well suited for corrosive media and demanding process environments. Seats and seals are reinforced PTFE for chemical resistance and long service life. With a maximum working pressure of 600 psi and compliance with NACE MR-01-75, this valve is a dependable choice for oil and gas, chemical processing, and industrial plumbing applications. It features a padlock-capable handle for lockout-tagout compliance. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers.

This valve is designed for use in industrial and commercial fluid control systems where 3/4-inch female NPT connections are required. The full-port design minimizes pressure drop across the valve, making it appropriate for flow-critical lines. The 316 stainless steel construction and NACE MR-01-75 compliance make it a practical selection for sour gas service, offshore, and corrosive chemical environments. The two-piece body design simplifies maintenance and seat inspection without removing the valve from the line.

Key Features

• 316 stainless steel body and trim for corrosion resistance in aggressive media
• Full-port design minimizes flow restriction and pressure drop
• Reinforced PTFE seats and seals for chemical compatibility and durability
• Rated to 600 psi maximum working pressure
• Padlock-capable handle supports lockout-tagout procedures
• NACE MR-01-75 compliant for sour gas and corrosive service environments

Compatibility

Designed as an OEM-style replacement or direct installation valve for 3/4-inch FNPT piping systems requiring a full-port stainless steel ball valve rated to 600 psi in NACE MR-01-75 service applications.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber following applicable IPC and facility piping codes. Isolate and depressurize the line completely before removing any existing valve or making connections. Apply thread sealant appropriate for the media being handled to all NPT connections. The padlock handle should be engaged during any lockout-tagout procedure before downstream work begins.
