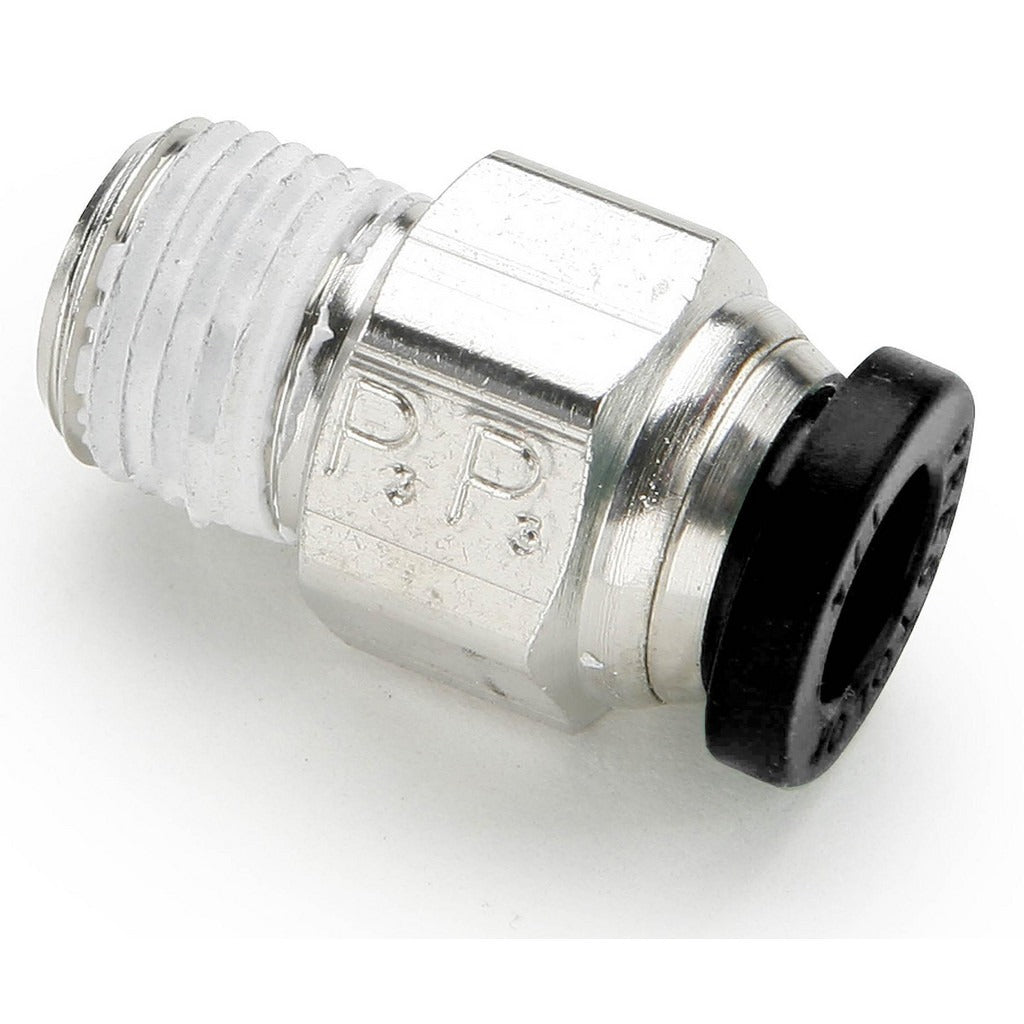

Parker W68PLPR-5/32-1 Push-to-connect Male Npt Fitting

Product Description

The PARKER W68PLPR-5/32-1 is a push-to-connect to male NPT tube fitting designed for quick, tool-free tubing connections in pneumatic and fluid control systems. Constructed from nickel-plated brass, this fitting accepts 5/32 inch OD tubing and connects to a 1/16 inch male NPT threaded port. It is rated for a maximum working pressure of 300 psi. The push-to-connect mechanism allows technicians to seat tubing by hand without ferrules or compression tools, speeding up installation in tight or high-volume service environments. HVAC, refrigeration, and instrumentation technicians commonly work with fittings of this type.

This fitting is suited for residential and light commercial pneumatic control lines, instrumentation tubing runs, and fluid handling circuits where a compact, reliable push-to-connect interface to a threaded male NPT port is required. The black actuator button is made from a flame-resistant material that meets the UL94 V-0 flammability standard, making it appropriate for installations where flame-resistance compliance is specified. Package quantity is 1 fitting per unit.

Key Features

• Push-to-connect design allows hand installation without ferrules or compression tools
• Nickel-plated brass construction for corrosion resistance in pneumatic and fluid service
• Rated to 300 psi maximum working pressure
• 1/16 inch male NPT thread for direct port connection
• Accepts 5/32 inch OD tubing
• Black actuator button complies with UL94 V-0 flame-resistant standard

Compatibility

Designed as an OEM-style push-to-connect tube fitting for pneumatic control and instrumentation systems requiring a 5/32 inch OD tube connection to a 1/16 inch male NPT threaded port.

Installation Notes

Installation is performed by licensed HVAC technicians, plumbers, or instrumentation mechanics. Depressurize and isolate the system before disconnecting or installing any fittings. To release tubing from the push-to-connect collet, depress the release collar while pulling the tube straight out. Verify that tubing OD and NPT thread size match the fitting specifications before installation to ensure a leak-free seal.
