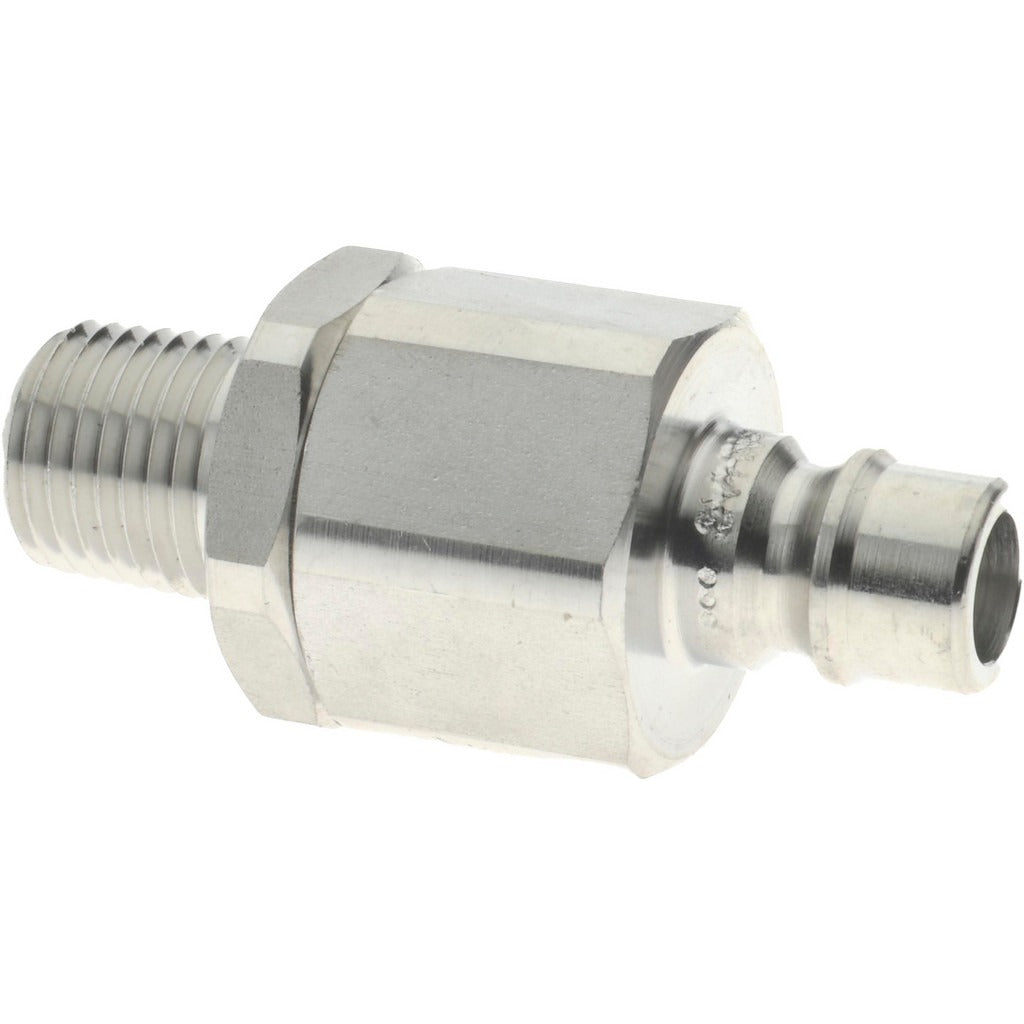

Parker SVHN4-4M Hydraulic Hose Mpt Fitting 1/4 in 5000 Psi

Product Description

The PARKER SVHN4-4M is a straight male pipe thread (MPT) hydraulic hose fitting rated for 5,000 psi maximum working pressure. Constructed from stainless steel, this fitting connects hydraulic hoses to system ports using a 1/4-inch NPT threaded interface. At 2.03 inches in overall length and 0.16 pounds, it is a compact, durable component suited for high-pressure fluid conveyance in demanding industrial and mobile equipment environments. Licensed hydraulic technicians and fluid power specialists are the typical installers for this type of fitting in production or field service applications.

The SVHN4-4M is designed for use on industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a reliable 1/4-inch NPT male connection. Its straight geometry suits direct port-to-hose connections where inline routing is preferred. This Series H fitting is a practical choice for tight-clearance installations where a low-profile straight fitting keeps plumbing clean and serviceable.

Key Features

• 5,000 psi maximum working pressure for high-pressure hydraulic service
• Stainless steel construction for corrosion resistance in wet and industrial environments
• 1/4-inch NPT threaded connection with straight body geometry
• 2.03-inch overall length in a compact, lightweight form at 0.16 pounds
• Compatible with industrial hydraulic lines, mobile equipment, and water and coolant lines
• Series H designation for consistent fitment within the PARKER hose fitting system

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines using a 1/4-inch NPT threaded port connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Apply thread sealant appropriate for the system fluid and pressure rating per the fitting and equipment manufacturer guidelines. Torque to the equipment manufacturer specification using calibrated wrenches — do not over-tighten stainless steel NPT fittings, as galling can occur.
