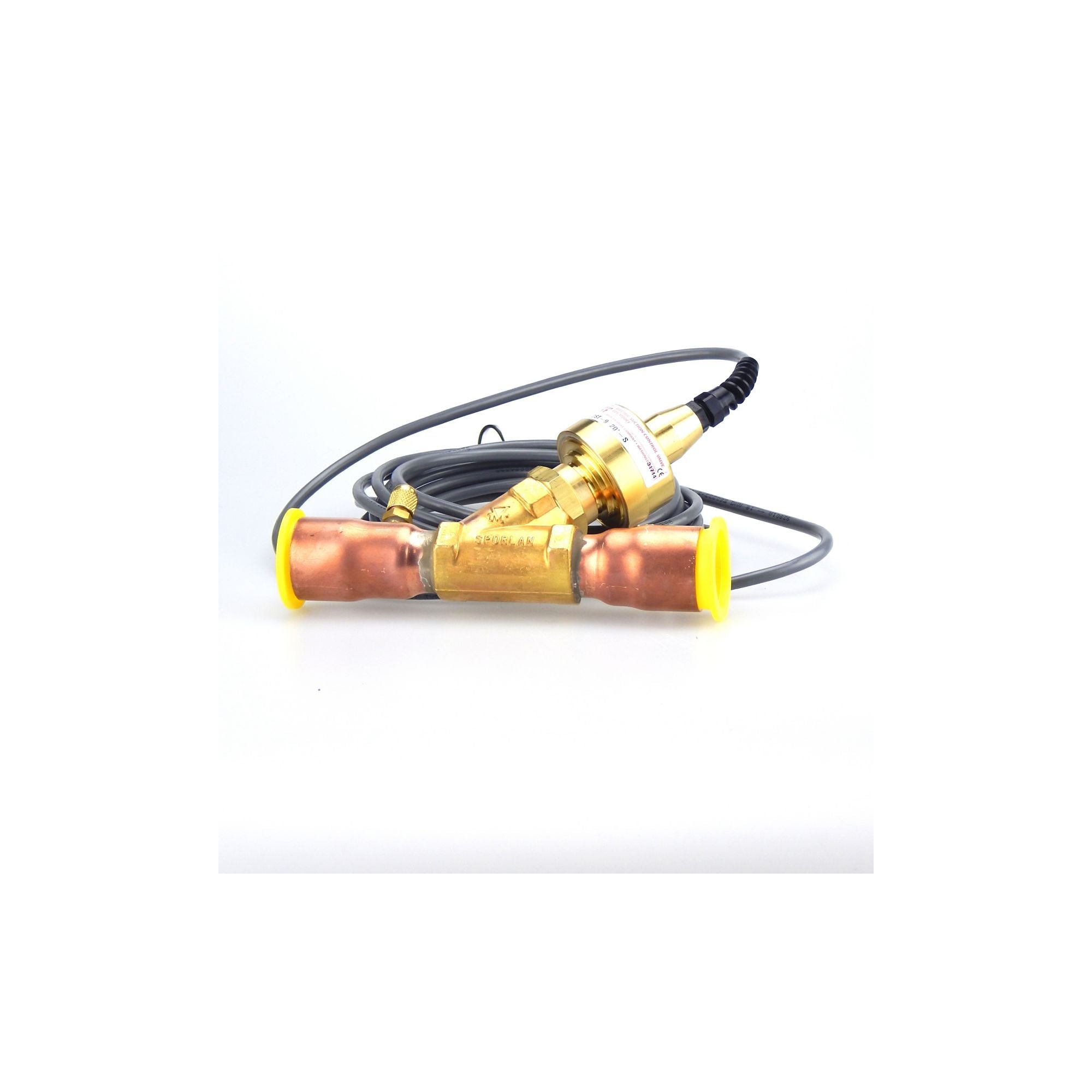

Parker Sporlan 940082 Evaporator Control Valve CDST-9 11ODF

Product Description

The Parker Sporlan Evaporator Control Valve, model 940082, is engineered to provide precise and energy-efficient control of temperatures within evaporators. This valve regulates refrigerant flow based on feedback from an electronic controller and sensor, facilitating optimal evaporator performance.

• Designed for minimal power consumption, using only four watts.
• Features balanced ports for enhanced flow control.
• Compact step motor with integral gear reduction ensures accuracy.

Product Highlights

This evaporator control valve replaces traditional mechanical pressure regulators and thermostats, suitable for a variety of HVAC applications including heat reclaim and head pressure control. Its innovative step motor design allows for zero additional pressure drop across the suction line.

Product Information

Standard Information

• Material: Brass, Copper, Stainless Steel
• Connection Type: ODF (one-directional flow)

Technical Specifications

• Model: CDST-9 11ODF 20ft-S
• Size: Inlet and Outlet Connection 1-3/8 inches ODF
• Temperature Range: -50°F to 140°F
• Maximum Temperature: 240°F
• Refrigerant Compatibility: R-134a, R-404A, R-407C, R-410A, R-507A
• Weight: 3.8 lbs
• Width: 8.5 inches
• Height: 3.25 inches
• Length: 12 inches
