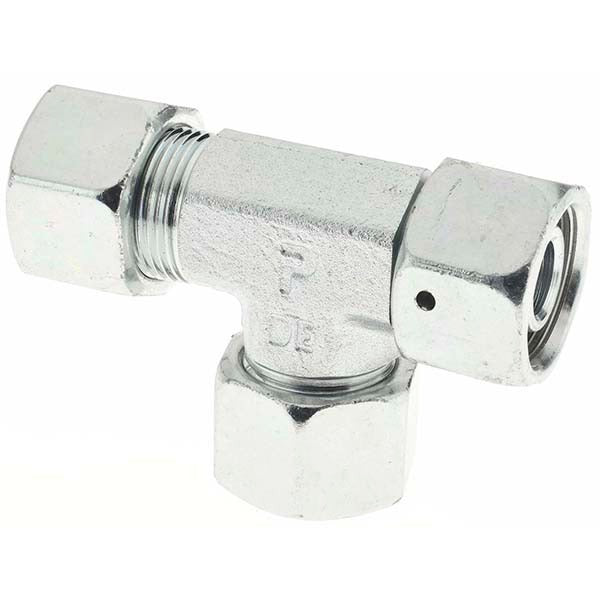

Parker PT-00526 Swivel Nut Run Tee M24x1.5 16mm Tube Od

Product Description

The PARKER PT-00526 is a flareless bite-type swivel nut run tee fitting designed for use in hydraulic and fluid power tube assemblies. The bite-type design grips the tube OD mechanically during installation, eliminating the need for flaring. This fitting accepts 16 mm outside diameter tubing and threads to an M24 x 1.5 metric connection. The run tee configuration allows a branch takeoff inline with the main tube run. It is typically installed by hydraulic technicians, fluid power mechanics, and industrial maintenance professionals working on metric tube systems.

This fitting is suited for metric tube plumbing in industrial hydraulic circuits, fluid distribution systems, and mobile equipment hydraulic lines. The M24 x 1.5 thread standard and 16 mm tube OD sizing are common in European-specification and metric-designed equipment. Each package contains two fittings. Applications include inline branch connections where a tee must be made without tube flaring, keeping installation tooling requirements to a minimum.

Key Features

• Flareless bite-type design mechanically grips tube OD without a flaring tool
• Swivel nut construction allows the fitting body to be positioned before final torque
• Run tee configuration provides an inline branch port off the main tube path
• M24 x 1.5 metric thread for compatibility with metric hydraulic ports and adapters
• Accepts 16 mm tube OD tubing
• Sold in packages of two fittings per pack

Compatibility

Designed for use with 16 mm outside diameter tubing in metric flareless bite-type tube systems using M24 x 1.5 threaded connections. Confirm system pressure ratings and tube wall thickness meet the requirements of the specific circuit before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic familiar with flareless bite-type fittings. Depressurize and isolate the hydraulic circuit fully before disassembling any existing connections or installing this fitting. Follow the fitting manufacturer's presetting procedure to properly seat the bite ring on the tube OD before final assembly into the port. Do not overtighten; consult the applicable system or fitting specification for proper assembly method.
