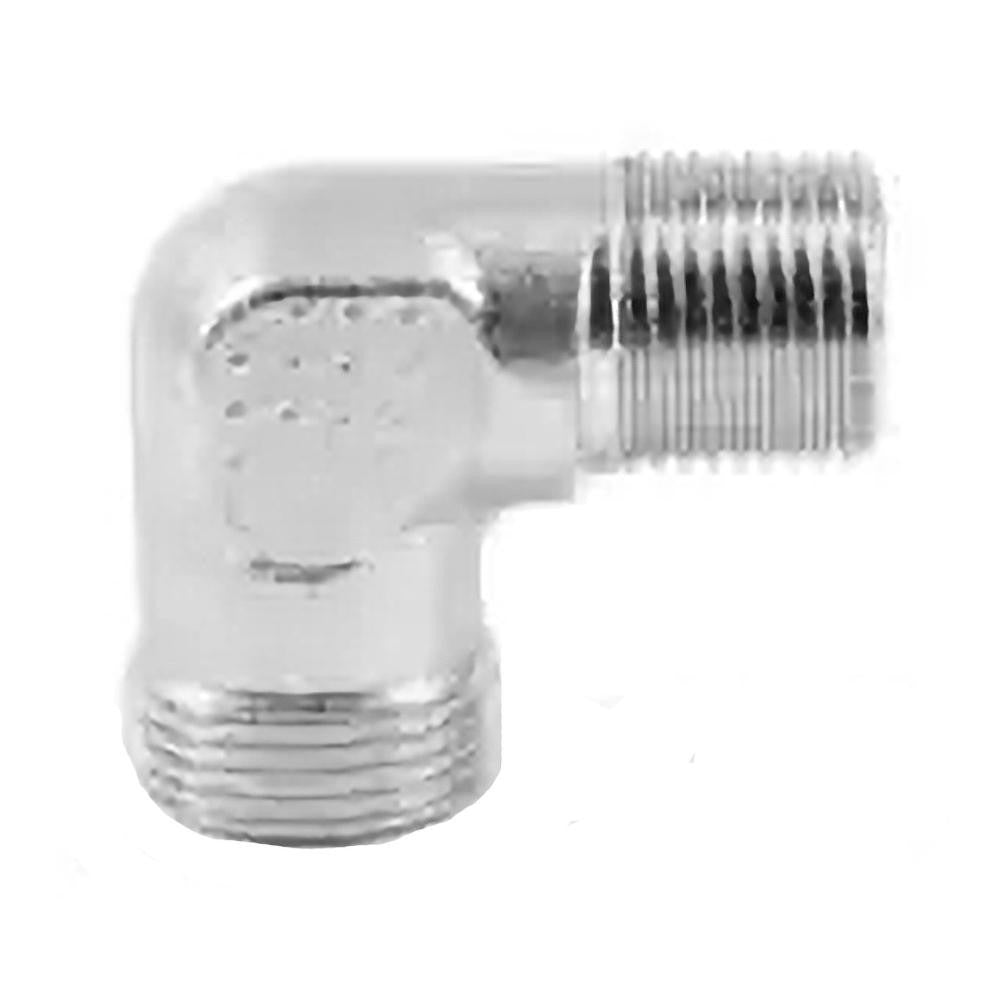

Parker PT-00461 Bite-type 90 Elbow 6mm 1/8 Bspt Steel

Product Description

The PARKER PT-00461 is a flareless bite-type tube 90 degree elbow fitting designed for use in hydraulic and instrumentation tubing systems. It accepts 6 mm outside diameter tubing and connects to a 1/8 BSPT threaded port. Constructed from steel, it is rated for a maximum working pressure of 100 bar. The bite-type design eliminates the need for flaring the tube end, relying instead on a ferrule that bites into the tube wall to create a secure, leak-resistant seal. This fitting is installed by licensed pipefitters, hydraulic system technicians, and industrial maintenance professionals working on fluid power or process piping assemblies.

This elbow fitting is suited for tight-routing applications where a 90 degree change of direction is required in a tubing run. It is commonly used in hydraulic control circuits, pneumatic instrumentation lines, and fluid power systems operating at elevated pressures. The BSPT thread type makes it compatible with metric and British-standard threaded ports found in European and internationally manufactured equipment. Each package contains 4 fittings.

Key Features

• Flareless bite-type design eliminates tube flaring for faster installation
• Rated to 100 bar maximum working pressure
• 90 degree elbow configuration for tight-space tube routing
• 1/8 BSPT thread for compatibility with British Standard Pipe Taper ports
• 6 mm tube OD sizing for metric tubing systems
• Steel construction for durability in high-pressure fluid service

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and instrumentation tubing systems using 6 mm outside diameter tubing and 1/8 BSPT threaded ports.

Installation Notes

Installation should be performed by a qualified pipefitter or hydraulic systems technician. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the tube end is cut square and deburred before inserting into the fitting body, as the bite-type ferrule requires a clean tube surface to seat correctly. Follow the fitting manufacturer torque and assembly procedure and verify system integrity under controlled pressure before returning the system to service.
