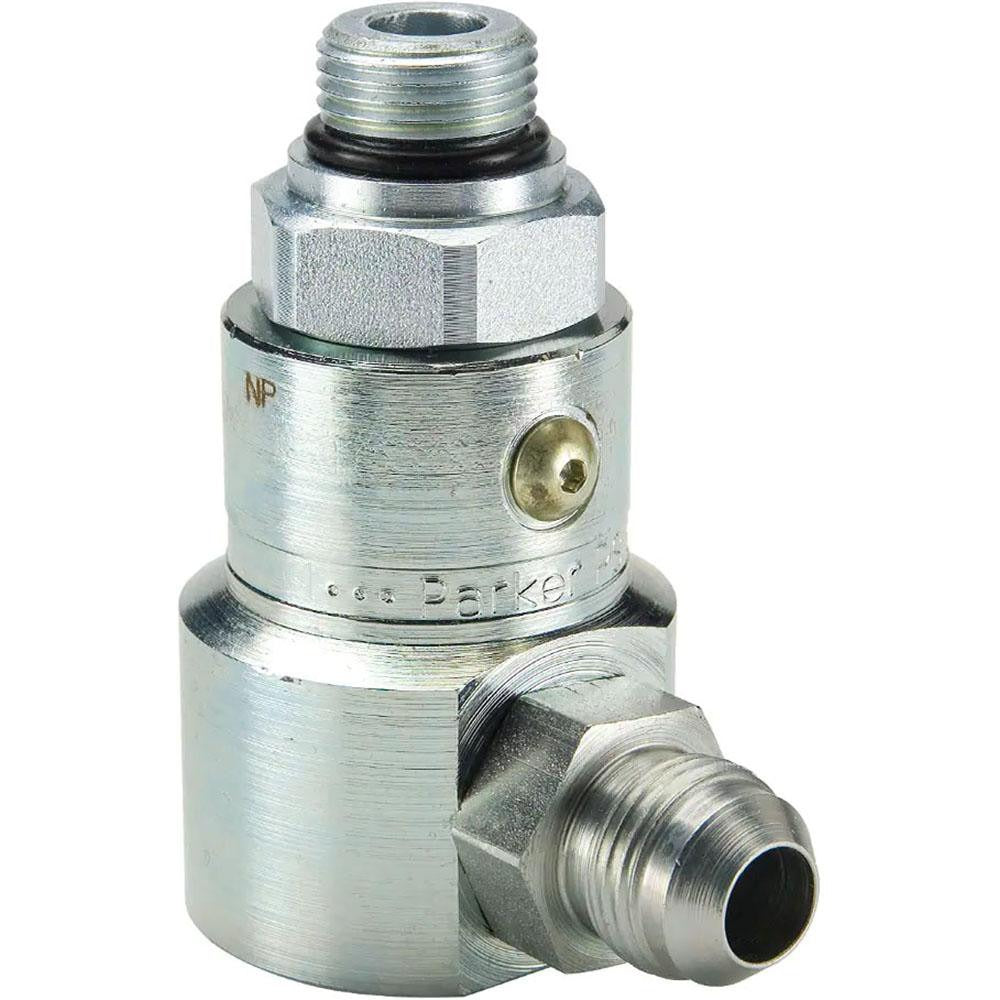

Parker PS890503-8-8 Male Orb Jic Swivel Elbow Fitting

Product Description

The PARKER PS890503-8-8 is a hydraulic hose fitting designed for high-pressure fluid conveyance systems in mobile equipment, industrial machinery, and hydraulic power units. It connects a Male SAE O-Ring Boss (ORB) straight thread on one end to a Male JIC 37-degree flare swivel on the other, with a 90-degree elbow body configuration. The fitting is rated to 5,000 psi maximum working pressure and is manufactured from steel. Overall length is 3.19 inches. This part is installed by hydraulic system technicians and heavy equipment mechanics during hose assembly, line routing, and repair work.

This fitting is suited for use in hydraulic circuits where a 90-degree directional change is needed between a ported component and a JIC-terminated hose. Common applications include construction equipment, agricultural machinery, industrial hydraulic presses, and mobile hydraulic systems. The 1/2-inch hose size and 3/4-14 thread size make it a standard choice for mid-range hydraulic lines operating at high pressure. It is appropriate for both new assembly and field replacement of worn or damaged fittings in existing hydraulic circuits.

Key Features

• Male ORB straight thread inlet provides a leak-resistant seal at the port face using an O-ring
• Male JIC 37-degree flare swivel outlet allows rotational positioning during hose assembly without twisting the hose
• 90-degree elbow body simplifies routing in tight or confined hydraulic installations
• 5,000 psi maximum working pressure rating suitable for demanding hydraulic circuits
• Steel construction for durability in high-load hydraulic environments
• Threaded connection type for secure mechanical attachment to hose ends and port fittings

Compatibility

Designed as a replacement or assembly fitting for hydraulic hose systems using 1/2-inch hose with Male ORB port connections and Male JIC 37-degree flare hose ends. Part of the Parker PS Series hydraulic fitting line.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Inspect O-ring condition before assembly and replace if damaged. Torque the ORB end to the port per the equipment manufacturer's specification and confirm the JIC swivel rotates freely before final tightening of the hose end.
