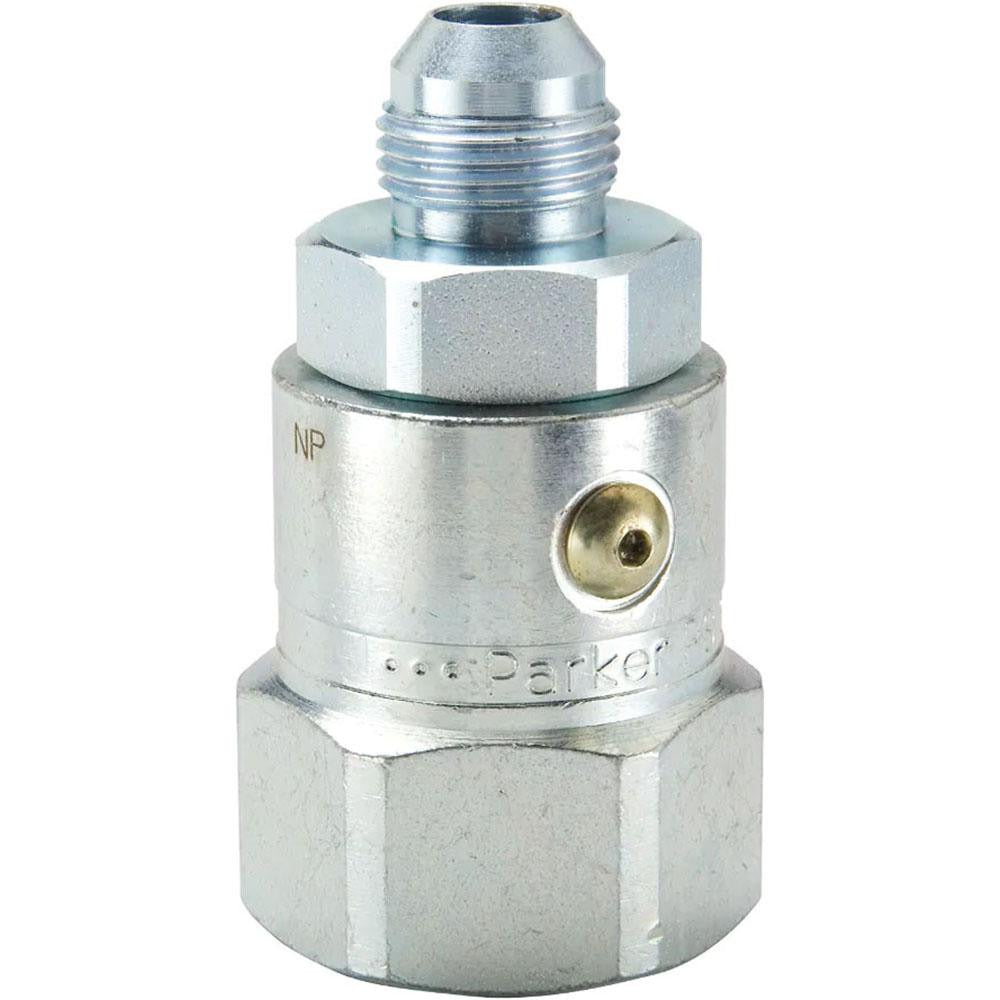

Parker PS1610306-16-16 Jic Swivel Fitting 1 in 5000 Psi

Product Description

The PARKER PS1610306-16-16 is a straight inline hydraulic hose fitting designed to connect a male JIC 37-degree flare end to a female JIC 37-degree flare swivel end. Built from steel, it carries a maximum working pressure rating of 5,000 psi, making it suited for demanding hydraulic circuit applications. The swivel female end allows rotation during installation, reducing hose twist and making routing easier in tight plumbing runs. With a 1-5/16-12 thread size and a 1-inch hose size, this fitting belongs to the Parker PS Series and is commonly installed by hydraulic technicians and industrial maintenance professionals on mobile and stationary hydraulic systems.

This fitting is used in hydraulic hose assemblies where an inline JIC-to-JIC transition is required. The straight configuration makes it appropriate for direct in-line connections without angular offset. Typical applications include industrial machinery, mobile hydraulic equipment, and fluid power systems that operate at high pressure. The female swivel end reduces the torque transferred to the hose during tightening, which helps maintain hose assembly integrity and reduces the risk of hose damage at the connection point.

Key Features

• Male JIC 37-degree flare shaft with 1-5/16-12 thread size for secure high-pressure sealing
• Female JIC 37-degree flare swivel housing allows hose rotation during installation to prevent twist
• 5,000 psi maximum working pressure rating suitable for demanding hydraulic circuits
• Straight inline configuration with 3.62-inch overall length for direct end-to-end connections
• Steel construction provides durability in high-pressure fluid power environments
• Parker PS Series fitting with 1-inch hose size compatibility

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch hydraulic hose assemblies using JIC 37-degree flare connections rated to 5,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. JIC flare fittings rely on metal-to-metal seating at the 37-degree flare interface — inspect both mating flare surfaces for nicks or damage before assembly and do not use thread sealant on JIC flare seats. Torque to the fitting manufacturer's published specifications for the thread size and material; refer to Parker fitting installation guidelines for the PS Series.
