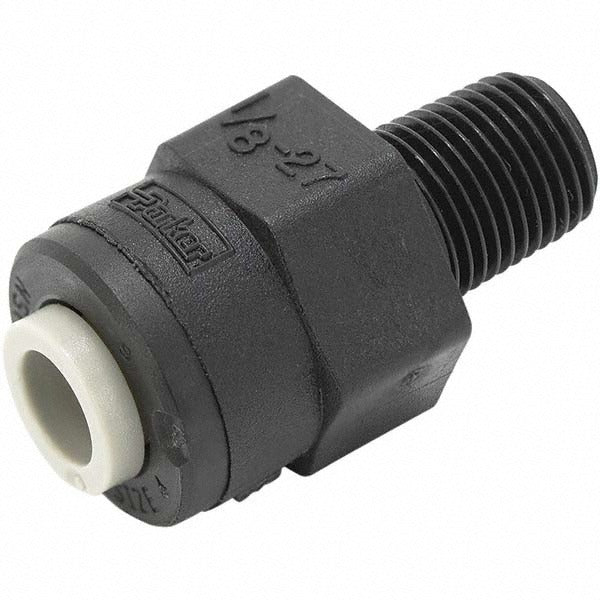

Parker PPB8MC8-MG Push-to-connect Connector 1/2 in Od

Product Description

The PARKER PPB8MC8-MG is a push-to-connect tube-to-pipe connector fitting designed for quick, tool-free tube connections in fluid handling and pneumatic systems. Molded from polypropylene, this black fitting accepts 1/2 inch OD tubing on one end and connects to a 1/2 inch NPTF threaded pipe port on the other. It is rated to 150 psi and suited for low-pressure water, air, or compatible fluid lines in light industrial, HVAC, and plumbing applications. Plumbers, HVAC technicians, and mechanical contractors install this type of fitting where fast, reliable connections are needed without soldering or compression tooling.

This connector is used in residential and light commercial installations where polypropylene fittings are appropriate for the line media and operating conditions. The push-to-connect design allows the tubing to seat and lock with a single insertion, making it practical for tight spaces or frequent service situations. Applications include equipment drain lines, condensate management systems, water supply connections, and low-pressure pneumatic circuits.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure locking
• Polypropylene construction offers corrosion resistance suitable for water and mild fluid service
• Rated to 150 psi for compatibility with low-pressure fluid and air lines
• NPTF pipe thread ensures a pressure-tight mechanical seal at the pipe port
• Compact profile at 1.46 inches height and length with 0.94 inch width for tight installation spaces
• Black color provides easy visual identification in mixed-fitting applications

Compatibility

Designed as an OEM-style push-to-connect replacement connector for 1/2 inch OD tubing applications terminating at a 1/2 inch NPTF pipe thread port in light commercial and residential fluid systems.

Installation Notes

This fitting is installed by plumbers or HVAC technicians working on low-pressure fluid or pneumatic lines. Shut off and depressurize the system completely before removing or installing any fitting. Ensure the tubing end is cut square and clean with no burrs before inserting into the push-to-connect port to achieve a proper seal. Verify that the tubing material and line media are compatible with polypropylene before installation.
