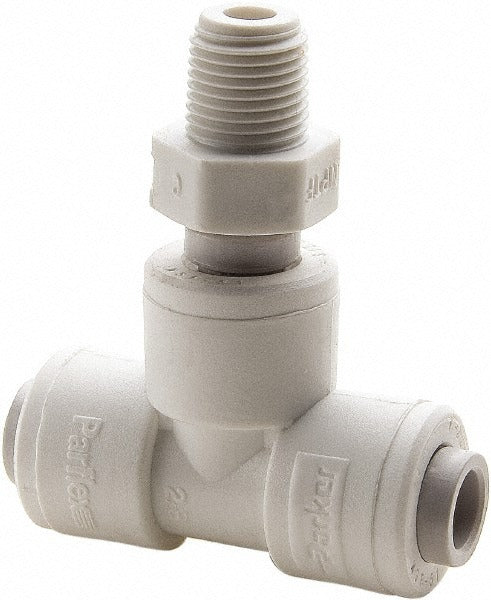

Parker PPB6MTS4-MG Male Swivel Branch Tee 3/8x1/4 in

Product Description

The PARKER PPB6MTS4-MG is a push-to-connect male swivel branch tee tube fitting designed for quick, tool-free connections in pneumatic and fluid distribution systems. Constructed from polypropylene, it handles pressures up to 150 psi and accommodates tubing with a 3/8 inch and 1/4 inch outside diameter. The swivel branch feature allows rotational adjustment on the male thread branch port, simplifying alignment during installation in tight or angular plumbing runs. This fitting is commonly installed by HVAC technicians, plumbers, and industrial maintenance professionals working with push-fit tubing systems where fast assembly and leak-free performance are required.

The PPB6MTS4-MG suits residential and light commercial applications involving pneumatic control lines, water distribution, or fluid transfer tubing. Its push-to-connect design eliminates the need for solvents, clamps, or special tools at the tube connection points. The male swivel branch port threads into a fixed female port on equipment or manifolds while the push-in ports accept compatible OD tubing on the run and branch legs. Overall package dimensions measure approximately 1.9 inches in height, 0.81 inches in width, and 1.02 inches in length.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Swivel male branch port enables rotational alignment during installation
• Polypropylene construction provides corrosion resistance for water and low-pressure pneumatic service
• Rated to 150 psi working pressure
• Tee configuration supports 3/8 inch OD run ports and 1/4 inch OD branch port
• Compact form factor suits confined installation spaces

Compatibility

Designed as an OEM-style replacement push-to-connect fitting for pneumatic and fluid tubing systems using 3/8 inch and 1/4 inch outside diameter tubing with a male swivel branch tee configuration.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or qualified maintenance personnel. Before servicing any fitting, shut off and depressurize the system completely. Ensure tubing ends are cut cleanly and squarely with no burrs before inserting into the push-to-connect ports to maintain a proper seal. Verify that thread engagement on the male swivel port meets applicable code requirements such as IPC or IFGC depending on the service medium.
