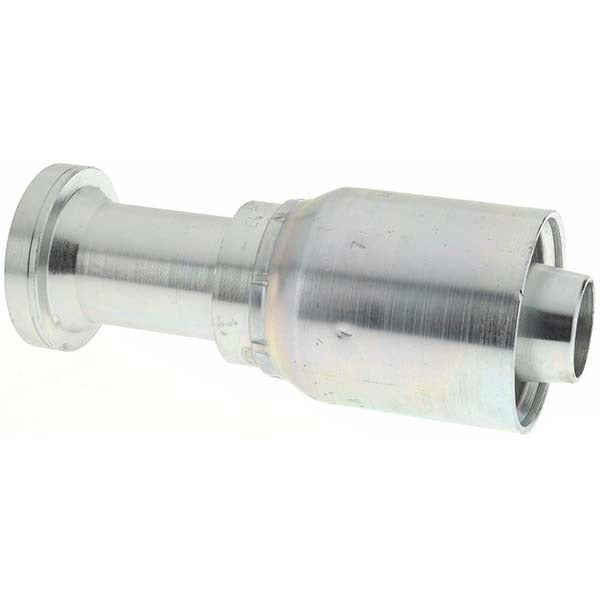

Parker PP-00569 Code 62 Straight Hydraulic Hose Fitting

Product Description

The PARKER PP-00569 is a Code 62 straight hydraulic hose fitting designed for high-pressure fluid power systems. Machined from steel with a threaded SAE connection, this fitting provides a reliable, leak-resistant joint between hydraulic hose and port. It carries a 1.25-inch inside diameter and an overall length of 5.73 inches, making it well-suited for mid- to large-bore hydraulic circuits where consistent flow and pressure integrity are critical. Licensed hydraulic technicians and fluid power mechanics install this type of fitting in mobile equipment, industrial machinery, and heavy-duty hydraulic assemblies where Code 62 four-bolt flange or straight-thread terminations are specified.

This fitting is rated for use with Parker 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hydraulic hose series. It is appropriate for both OEM build and field repair applications in industrial and mobile hydraulic systems. The 1-1/4-inch thread size and straight configuration make it a common selection for trunk lines and return circuits requiring consistent bore-to-bore transitions. Compliance with ISO 12151-3-S-S confirms dimensional and performance conformance to international hydraulic fitting standards.

Key Features

• Code 62 straight configuration for high-pressure hydraulic hose termination
• 1.25-inch inside diameter matches 1-1/4-inch hose size for full-bore flow
• Steel construction for durability in demanding hydraulic environments
• SAE threaded connection type for standardized, leak-resistant assembly
• Overall length of 5.73 inches supports standard routing and clearance requirements
• Meets ISO 12151-3-S-S and California Proposition 65 compliance standards

Compatibility

Designed for use with Parker 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hydraulic hose series with a 1-1/4-inch hose diameter.

Installation Notes

Hydraulic fittings of this type are installed by qualified fluid power technicians or millwrights. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Follow applicable torque procedures for SAE straight-thread connections as outlined in the equipment or hose assembly manufacturer documentation. Inspect hose ends and sealing surfaces for damage before assembly to prevent leaks under pressure.
