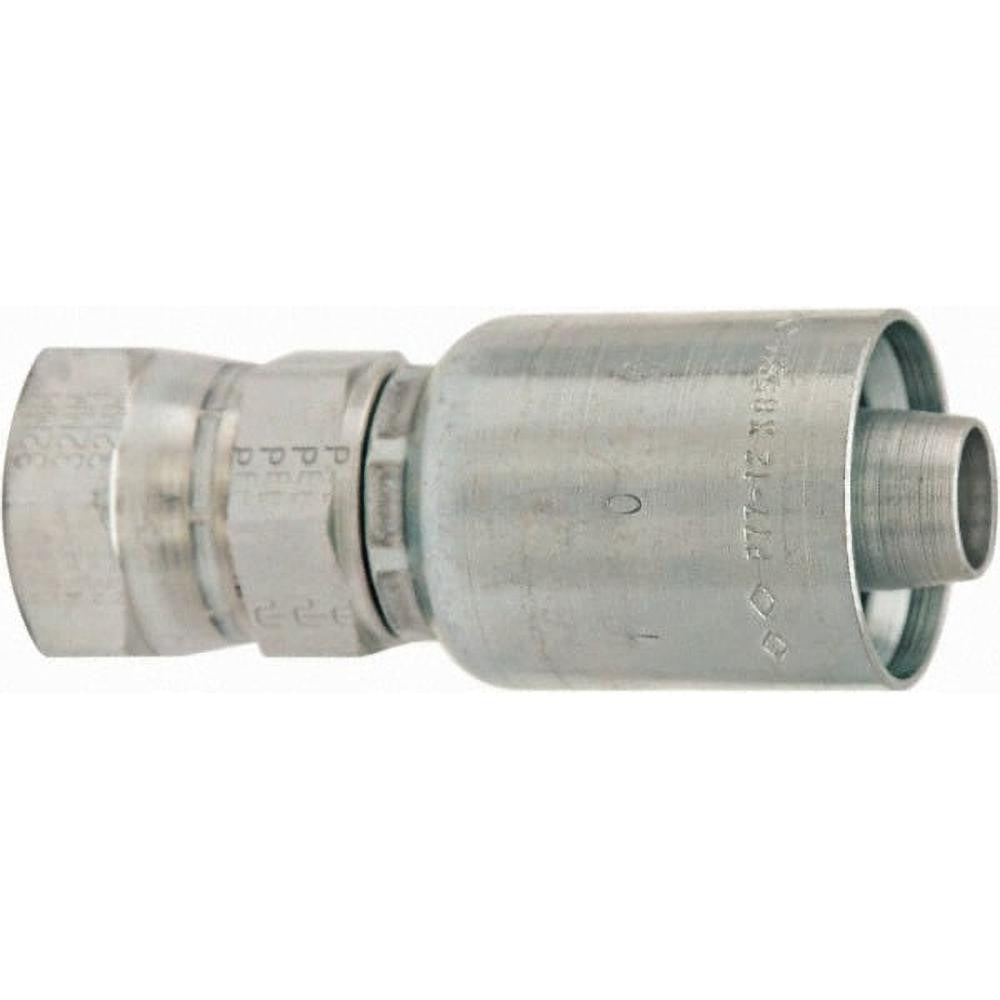

Parker PP-00548 Female Jic 37 Swivel Fitting 0.625 in Steel

Product Description

The PARKER PP-00548 is a straight female JIC 37-degree swivel fitting designed for use with hydraulic hose assemblies in high-pressure fluid power systems. Manufactured from steel, this Series 77 fitting features a 0.625-inch (5/8-inch) hose inside diameter, a 7/8-14 UNF thread size, and a threaded connection type. The swivel design allows for rotational adjustment during installation, reducing hose twist and assembly stress. At 3.18 inches overall length, the fitting provides a compact, inline connection point. Licensed HVAC and fluid-power technicians, hydraulic system builders, and industrial maintenance professionals install this type of fitting in mobile and stationary hydraulic circuits.

This fitting is suited for straight-inline hose terminations in hydraulic systems operating with compatible Parker hose series. It is appropriate for both mobile equipment and industrial stationary hydraulic applications where a female JIC 37-degree swivel end is required at the hose-to-port or hose-to-component interface. The 10 mm hose size designation corresponds to a 5/8-inch inside diameter, making it a common selection for mid-range flow hydraulic circuits.

Key Features

• Straight female JIC 37-degree swivel configuration for inline hose terminations
• 0.625-inch (5/8-inch) hose inside diameter, Hose Size 10
• 7/8-14 UNF thread size for standard JIC port compatibility
• Steel construction for durability in high-pressure hydraulic service
• 3.18-inch overall length for compact assembly integration
• Compliant with ISO 12151-5 and subject to California Proposition 65 standards

Compatibility

Designed for use with Parker 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hydraulic hose series as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power professional familiar with JIC swivel fitting assembly. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fitting. Use appropriate hand tools rated for the fitting size and ensure thread engagement is clean and free of debris before tightening. Follow applicable hydraulic system design standards and equipment OEM specifications for assembly torque and system pressure ratings.
