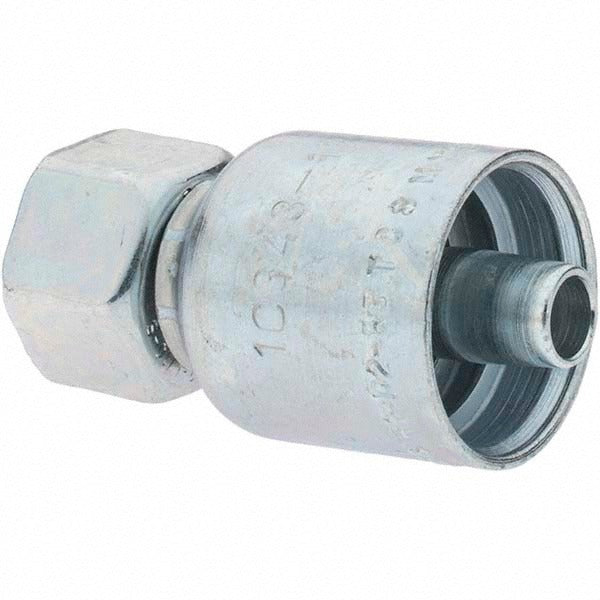

Parker PP-00253 Hydraulic Hose Swivel Fitting 0.375 in

Product Description

The PARKER PP-00253 is a straight swivel fitting designed for hydraulic hose assemblies. It connects hose ends to hydraulic system ports using a metric threaded interface, allowing the hose to rotate freely and reduce torsional stress during assembly and service. Built from steel, the fitting accepts a 3/8 inch (0.375 inch ID) hose and uses an M18x1.5 metric thread. Overall length is 2.23 inches (57 mm). This is a Series 43 fitting and is installed by hydraulic system technicians and fluid power specialists working on mobile or industrial hydraulic circuits.

This fitting is suited for hydraulic hose assemblies in both mobile and stationary equipment applications. It is designed for use with hose sizes designated as 6 mm in Parker metric hose sizing. Compatible hose series listed by Parker include the 187, TC, and ST series, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hose families. The straight configuration suits inline connections where hose orientation requires rotational freedom to prevent twist during installation.

Key Features

• Swivel design allows hose rotation to reduce torsional stress during assembly
• M18x1.5 metric thread for secure, leak-resistant connection
• Steel construction for durability in hydraulic service environments
• Straight shape for inline hose-to-port connections
• 2.23 inch overall length provides compact fitment in tight installations
• Meets California Proposition 65 labeling standards

Compatibility

Designed for use with Parker hose series 187 TC ST, 302, 304, 387 TC ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC ST, 722 TC ST, 787 TC ST, 797 TC ST, and 881 hoses in 6 mm (3/8 inch ID) hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use appropriate torque per the system specification for M18x1.5 metric threads and confirm fitting orientation before final assembly to avoid hose routing issues. Inspect threads and sealing surfaces for damage before installation.
