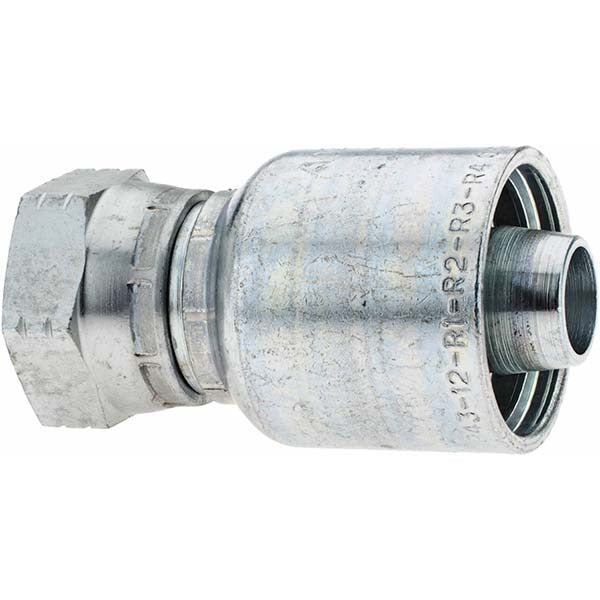

Parker PP-00107 Hydraulic Hose Female Pipe Rigid Fitting

Product Description

The PARKER PP-00107 is a female pipe rigid fitting designed for hydraulic hose assemblies in high-pressure fluid power systems. This straight, threaded fitting features a 3/4-inch BSPP (British Standard Parallel Pipe) shaft type with a 0.75-inch hose inside diameter and an overall length of 3.19 inches. Constructed from steel, it provides the structural integrity required for hydraulic line connections in demanding service environments. The rigid straight configuration ensures a secure, non-swivel connection at the hose termination point. Licensed hydraulic technicians and fluid power specialists are the primary installers of this type of fitting in industrial and mobile hydraulic circuits.

This fitting is suited for use in hydraulic systems requiring a BSPP-threaded female pipe connection at the hose end. It is appropriate for both stationary industrial equipment and mobile hydraulic machinery. The rigid design is preferred in applications where hose orientation is fixed and rotation at the fitting is not required. This fitting is sold in a package quantity of four units.

Key Features

• Female pipe rigid fitting with straight configuration for fixed-orientation hose routing
• 3/4-inch BSPP threaded shaft for compatibility with British Standard Parallel Pipe connections
• 0.75-inch (12 mm) hose inside diameter
• Steel construction for hydraulic service durability
• Overall length of 3.19 inches (81 mm)
• Meets ISO 12151-6 standards; subject to California Proposition 65 requirements

Compatibility

Designed for use with Parker hose series 187 TC, ST; 302; 304; 387 TC, ST; 422; 424; 426; 436; 471TC; 471ST; 472TC; 482TC; 482ST; 487 TC, ST; 722 TC, ST; 787 TC, ST; 797 TC, ST; and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disassembling any hose or fitting. Use appropriate assembly tooling and follow the hose manufacturer's assembly instructions for proper insertion depth and crimp or clamp specifications. Inspect threads for damage before assembly and ensure BSPP thread engagement is correct to prevent leaks under pressure.
