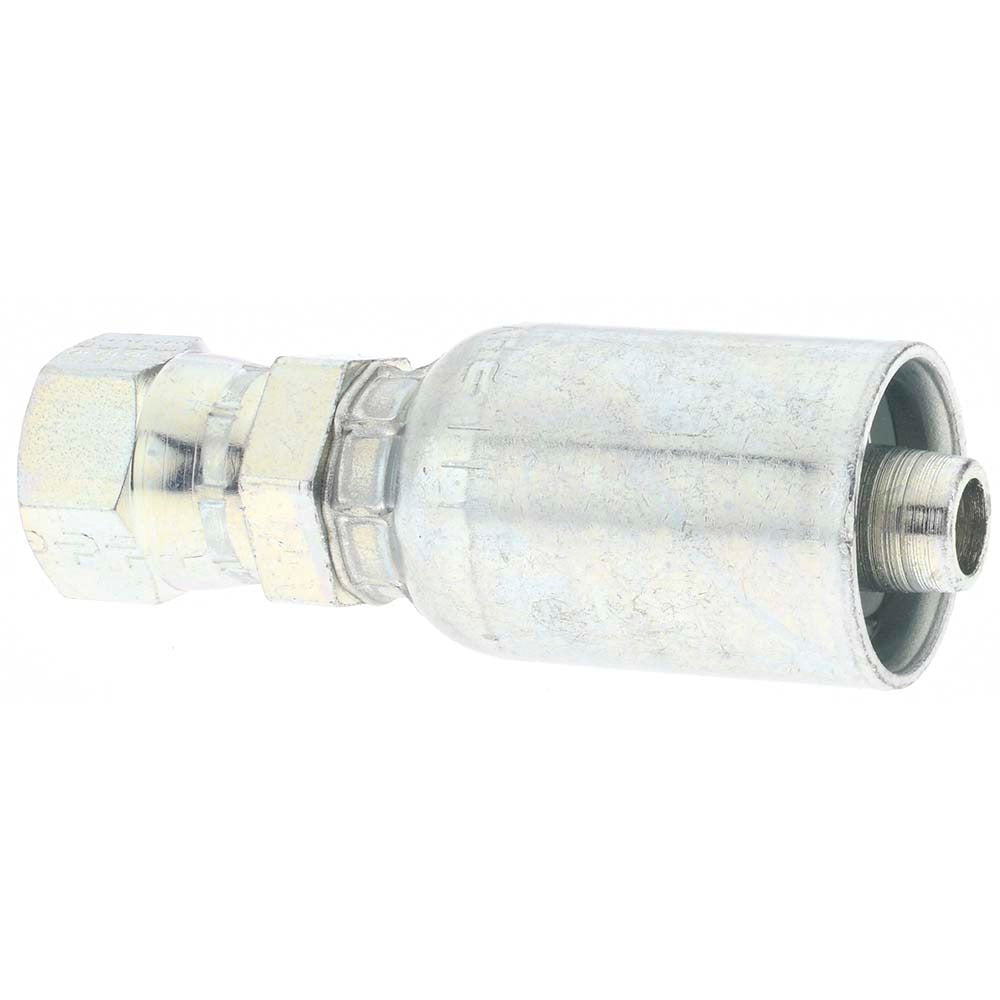

Parker PP-00097 Female Jic 37 Swivel Fitting 3/8 in Steel

Product Description

The PARKER PP-00097 is a straight female JIC 37-degree swivel hose fitting designed for hydraulic hose assemblies in mobile and industrial fluid power systems. Machined from steel, it accepts a 3/8-inch hose and uses a 9/16-18 thread for connection to JIC-ported equipment. The swivel design allows the fitting to rotate during assembly, reducing hose twist and torque stress at the connection point. This fitting is installed by hydraulic technicians and fluid power mechanics during hose fabrication or field repair. It is sold in a package quantity of four units per pack.

This fitting is suited for hydraulic hose assemblies operating in industrial machinery, mobile equipment, agricultural systems, and construction equipment where JIC 37-degree flare connections are specified. It is appropriate for medium-pressure hydraulic circuits where straight-run connections are required between the hose end and a female JIC port. The swivel seat ensures proper flare mating without binding or cocking the hose line during tightening.

Key Features

• Straight female JIC 37-degree swivel configuration minimizes hose twist during installation
• Steel construction provides durability in hydraulic service environments
• Accepts 3/8-inch hydraulic hose with 9/16-18 thread engagement
• Swivel body allows free rotation before final torque, simplifying assembly in tight spaces
• Sold in packs of four units for shop stock or field kits

Compatibility

Designed as an OEM-style hydraulic hose end fitting compatible with 3/8-inch hose assemblies terminating in JIC 37-degree female swivel connections on systems with 9/16-18 ported fittings.

Installation Notes

Installation should be performed by qualified hydraulic technicians following applicable fluid power standards. Depressurize and bleed the hydraulic system completely before disconnecting or installing any hose end fittings. Use calibrated torque tools and follow the fitting manufacturer torque specifications for JIC 37-degree swivel connections. Inspect the flare seat and threads for damage before assembly and replace any fitting showing deformation or corrosion.
