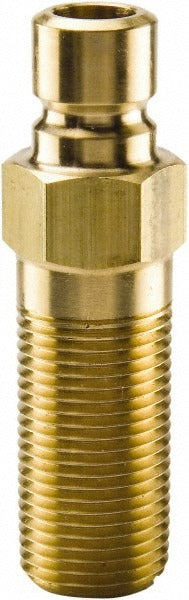

Parker PN250-25 Male Pipe Thread Extended Nipple 200 Psi

Product Description

The PARKER PN250-25 is a male pipe thread extended nipple fitting designed for hydraulic hose assemblies and fluid transfer connections. Machined from brass, this non-valved fitting features a 1/16 inch NPTF thread and is rated for pressures up to 200 psi. Part of the Moldmate series, it provides a secure, leak-resistant connection in low-pressure hydraulic and fluid systems. The compact body measures 0.43 inches in diameter and 2.5 inches in length, making it suitable for tight installation environments. Licensed plumbers and hydraulic technicians install this type of fitting in both industrial and light commercial applications.

This fitting is used in hydraulic hose assemblies and plumbing circuits where a male pipe thread extended nipple interface is required. The NPTF thread form provides a pressure-tight mechanical seal without relying solely on sealant tape. Typical install scenarios include low-pressure hydraulic circuits, fluid control manifolds, and industrial plumbing connections. The brass construction offers good corrosion resistance in water-based and petroleum-based fluid service within its rated temperature range of -20 degrees F to 400 degrees F.

Key Features

• 1/16 inch NPTF male pipe thread for pressure-tight mechanical sealing
• 200 psi pressure rating suitable for low-pressure hydraulic and fluid circuits
• Brass construction provides corrosion resistance in water-based and petroleum-based fluids
• Non-valved design allows unrestricted flow through the fitting
• Operating temperature range of -20 degrees F to 400 degrees F
• Compact profile at 2.5 inches length for use in space-constrained assemblies

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies and fluid system plumbing requiring a 1/16 inch NPTF male pipe thread extended nipple connection.

Installation Notes

Installation is typically performed by licensed plumbers or hydraulic system technicians. Depressurize and drain the hydraulic or fluid circuit fully before removing or installing any fitting. NPTF threads are designed to seal on thread interference, but apply thread sealant per the system manufacturer's recommendation to ensure a leak-free connection. Inspect threads for damage before installation and do not over-torque, as brass fittings can be damaged by excessive force.
