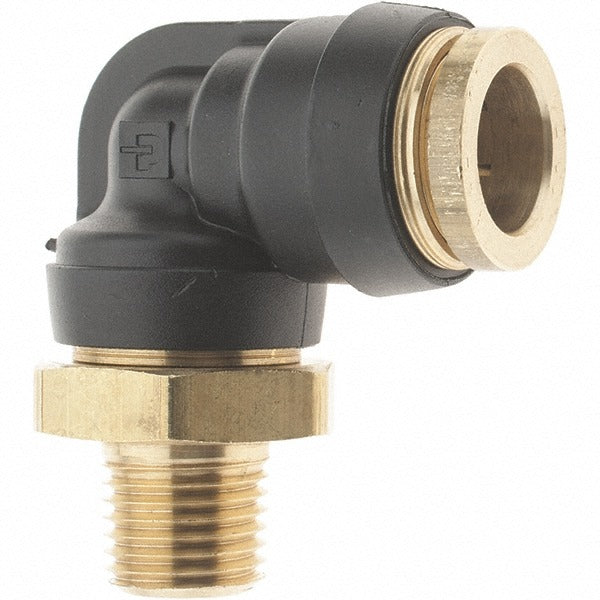

Parker PF-00060 90 Swivel Elbow 1/2 in Od 1/4 in Npt Brass

Product Description

The PARKER PF-00060 is a 90-degree swivel male elbow push-to-connect tube fitting manufactured from brass. It provides a Tube x MNPT x Tube x Male connection configuration, accepting 1/2-inch outside diameter tubing on the push-to-connect ends and a 1/4-inch male NPT threaded port. Rated to 250 psi maximum working pressure with a temperature range of -40 degrees F to 200 degrees F, this fitting is suited for pneumatic and fluid transfer lines where a directional change is needed. Licensed HVAC technicians, plumbers, and fluid system technicians install this type of fitting in low- to medium-pressure service lines.

This fitting is used in residential and light commercial applications where tubing must make a 90-degree turn and connect to a male NPT port. The swivel design allows the threaded male end to rotate during installation, reducing the risk of tube twist and simplifying routing in tight spaces. It meets D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards, making it appropriate for brake and air line service as well as general pneumatic systems. Typical install scenarios include equipment plumbing, compressed air distribution, and fluid control manifolds.

Key Features

• Push-to-connect ends accept 1/2-inch OD tubing for tool-free tube insertion
• Swivel male NPT port simplifies alignment without twisting the supply line
• Brass construction provides corrosion resistance and durability in fluid service
• 250 psi maximum working pressure rating
• Wide temperature range: -40 degrees F to 200 degrees F
• Meets D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards

Compatibility

Designed for use with 1/2-inch OD tubing and 1/4-inch male NPT ported equipment in pneumatic, brake line, and general fluid transfer systems that comply with SAE J844 and SAE J2494-3 specifications.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid line service. Depressurize and isolate the system completely before removing or installing any fittings. Ensure tubing is cut square and deburred before insertion into the push-to-connect end to achieve a proper seal. Apply thread sealant appropriate for the service fluid to the male NPT threads in accordance with applicable codes and the equipment manufacturer guidelines.
