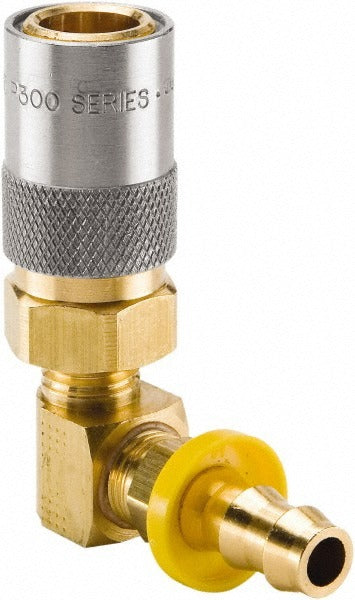

Parker PC216AV-BP 90 Deg Push-lok Hose Barb Coupler 200 Psi

Product Description

The PARKER PC216AV-BP is a 90-degree Push-Lok hose barb coupler designed for hydraulic and pneumatic hose assemblies requiring a secure, tool-free barb connection. Built from brass and rated to 200 psi, this valved coupler belongs to Parker's Moldmate series. The 90-degree body routes hose in tight-clearance installations where a straight fitting will not work. The valved design allows the connection to shut off flow when disconnected, reducing fluid spillage during service. It fits a 3/8-inch hose diameter and features a 1/4-inch body diameter. The operating temperature range runs from -20 degrees F to 400 degrees F, making it suitable for a wide range of fluid-handling environments. Licensed plumbers, pipefitters, and hydraulic system technicians are the typical installers.

The PC216AV-BP is suited for low-to-medium-pressure hydraulic lines, pneumatic circuits, coolant systems, and general fluid transfer applications where a 90-degree hose exit angle is required. The Push-Lok barb design accepts compatible hose without clamps or crimping tools, speeding assembly in both shop and field installations. The Moldmate series is commonly found in light industrial equipment, mobile hydraulic systems, and process fluid lines operating within the rated pressure and temperature envelope.

Key Features

• 90-degree body angle for tight-clearance or right-angle hose routing
• Valved construction shuts off flow at disconnect to minimize fluid loss
• 200 psi maximum pressure rating for low-to-medium-pressure fluid systems
• Brass construction for corrosion resistance in water, air, and compatible fluid service
• Push-Lok barb connection — no clamps or crimp tools required for assembly
• Wide temperature range: -20 degrees F to 400 degrees F

Compatibility

Designed for use with 3/8-inch inside diameter Push-Lok compatible hose within Parker's Moldmate series. Verify hose inside diameter and pressure rating before installation. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or hydraulic technicians. Depressurize and drain the hose circuit fully before removing or installing any fitting. Confirm the system fluid, pressure, and temperature are within the rated limits of this coupler before putting it into service. Follow applicable industry standards and equipment manufacturer guidelines for hose assembly and fitting installation.
