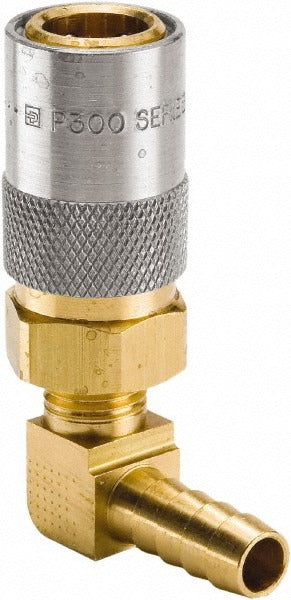

Parker PC214AV 90 Degree Hose Barb Coupler 200 Psi

Product Description

The PARKER PC214AV is a 90-degree hose barb coupler from the Moldmate series, designed for use in hydraulic and fluid transfer systems. This valved, brass fitting connects hoses at a right angle and is rated for 200 psi working pressure. The non-threaded shaft design allows for push-fit or barb-style assembly onto compatible hose ends. With a 1/4-inch body diameter and 1/4-inch hose diameter, it is sized for light to medium hydraulic lines. The operating temperature range of -20 degrees F to 400 degrees F makes it suitable for demanding thermal environments. This fitting is typically installed by hydraulic technicians, plumbers, and industrial service professionals.

The PC214AV is used in hydraulic hose assemblies where a 90-degree directional change is required. It is appropriate for residential, commercial, and light industrial applications involving fluid transfer lines. The valved design allows the fitting to retain fluid when the hose is disconnected, reducing spills during service. This fitting is compatible with 1/4-inch hose inner diameter applications and is commonly used in equipment plumbing, machine coolant lines, and general hydraulic routing where a compact right-angle connection is needed.

Key Features

• 90-degree hose barb coupler for right-angle hydraulic hose routing
• Valved design retains fluid at disconnect to minimize spillage
• Brass construction provides corrosion resistance and durability
• Rated for 200 psi working pressure
• Operating range of -20 degrees F to 400 degrees F suits high-temperature service
• Non-threaded shaft allows barb-style hose assembly without thread chasing

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/4-inch hose inner diameter hydraulic and fluid transfer assemblies requiring a 90-degree barb coupler connection.

Installation Notes

Installation is typically performed by a qualified hydraulic technician or plumber. Depressurize and drain the hydraulic system fully before removing or installing any fittings. Ensure the hose inner diameter matches the 1/4-inch barb size and that hose clamps or crimp sleeves are applied per the hose manufacturer's specifications. Follow applicable industry standards and equipment service documentation during installation.
