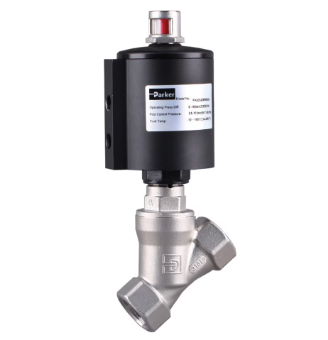

Parker PA40S3N8S080A Angle Seat Valve

Product Description

The Parker PA40S3N8S080A is a 2-way angle seat valve designed to manage various media such as air, inert gases, water, and steam. This valve has a durable body made from 304 stainless steel and utilizes an aluminum actuator. It operates in a normally open state and is equipped with 1-1/2 inch NPT connections.

• Features a robust 304 stainless steel body
• Includes 1-1/2 inch NPT connections
• Suitable for multiple applications including air and steam

Product Highlights

The Parker PA40S3N8S080A valve is ideal for various industrial settings where reliable fluid control is essential. Designed to meet standards, it operates efficiently under different pressure ratings.

Product Information

Standard Information

• Valve Type: 2-way
• Normal State: Open

Technical Specifications

• Connection Size: 1-1/2 inch
• Connection Type: NPT
• Pressure Rating Air/Water: 0-232 PSI
• Pressure Rating Steam: 0-130 PSI
• Orifice Size: 1.38 inches
• Seal Material: PTFE
• Minimum Pilot Pressure: 43.5 psi
• Cv Flow Factor: 36.2
• Air Actuator Pressure Port: 1/8 inch BSP
• Temperature Rating: 14 - 356 degrees Fahrenheit
• Body Material: 304 Stainless Steel
• Industry Standards: 97/23/EC, 94/9/CE
• Maximum Operating Pressure: 232.0 psi
• Actuator Housing Material: Aluminium
• Actuator Size: 80 mm
• Fluids Handled: Inert gases, hot water, oils, steam, aggressive and corrosive fluids
