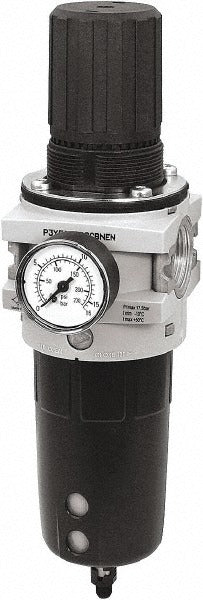

Parker P3YEA96ESCBNFN Frl Filter Regulator 3/4 Npt

Product Description

The PARKER P3YEA96ESCBNFN is a heavy-duty FRL combination unit that integrates a filter and regulator into a single-piece assembly with an included pressure gauge. Rated for up to 335 SCFM flow and a maximum supply pressure of 254 psi, this unit conditions compressed air by removing particulates down to 5 microns while maintaining a regulated downstream pressure. The polypropylene bowl with built-in bowl guard and sight glass allows technicians to monitor condensate levels without disassembly. A manual drain provides direct condensate removal. This unit is sized for 3/4 NPT porting and is installed by industrial maintenance technicians, pneumatic system specialists, and mechanical contractors working on compressed air distribution systems.

This FRL combination unit is suited for industrial and commercial compressed air systems where space-efficient air preparation is required in a single inline component. The single-piece filter/regulator design reduces the number of connection points in the air line, which is useful in tight panel or machine enclosures. Its modular connection capability allows integration into Parker P3Y series FRL assemblies where additional components such as lubricators or secondary filters may be added. The operating temperature range of -40 degrees F to 140 degrees F supports most indoor and climate-controlled industrial environments.

Key Features

• Single-piece filter/regulator design with integrated pressure gauge reduces installation footprint
• 335 SCFM flow capacity suits medium to high-demand compressed air applications
• 5-micron filtration rating removes fine particulates from the air supply
• Polypropylene bowl with bowl guard and sight glass for safe, easy condensate level monitoring
• Manual drain for direct condensate removal without tools
• Modular connection compatible with Parker P3Y series for expandable FRL configurations
• Wide temperature range from -40 degrees F to 140 degrees F

Compatibility

Designed as an OEM-style replacement and direct-fit component within the Parker P3Y series FRL platform. Modular connections support integration with compatible Parker P3Y series lubricators and accessory modules.

Installation Notes

Installation is performed by qualified industrial maintenance technicians or mechanical contractors. Depressurize and lock out the compressed air supply before servicing or installing this unit in accordance with applicable OSHA lockout/tagout procedures. Apply appropriate thread sealant to the 3/4 NPT port connections and verify all fittings are leak-free before returning the system to service. Do not exceed the 254 psi maximum supply pressure rating.
