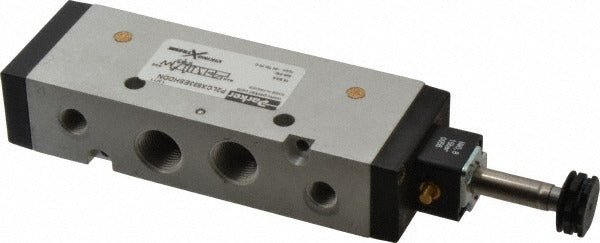

Parker P2LCX593ESHDDN Solenoid Valve 3/8 Inch Port

Product Description

The PARKER P2LCX593ESHDDN is a single-solenoid, 2-position directional control valve designed for pneumatic and fluid control applications in industrial and mechanical systems. It features a 3/8 inch port size with a normally open state through ports 1 and 2, allowing flow in the unactuated position. The valve body is constructed from aluminum with a Buna-N seal, providing a durable, lightweight assembly suited for moderate-pressure service up to 158 degrees F. With a Cv factor of 2.5, this valve delivers reliable flow capacity for a range of process control and automation tasks. Note that solenoid coils are sold separately and are not included with this valve body.

This valve is intended for use in industrial automation, process control, and mechanical systems where a normally open 2-position directional valve is required. Typical installation scenarios include pneumatic circuits, fluid handling panels, and control manifolds in commercial and light industrial settings. It is commonly installed by industrial maintenance technicians, mechanical contractors, and automation engineers. The aluminum body keeps weight low, making it well-suited for panel-mount or inline applications where system weight and space are considerations.

Key Features

• Single solenoid, 2-position valveless coil design — coil ordered separately
• 3/8 inch port size with normally open flow path through ports 1 and 2
• Aluminum body construction for lightweight, corrosion-resistant service
• Buna-N seal material compatible with a wide range of fluids and gases
• Cv factor of 2.5 for consistent, predictable flow performance
• Rated for service up to 158 degrees F with a minimum working pressure of 51 psi

Compatibility

Designed as a 2-position single-solenoid directional control valve for pneumatic and fluid control systems requiring a 3/8 inch port connection. Solenoid coils are not included and must be selected and ordered separately to complete the assembly.

Installation Notes

Installation should be performed by a qualified industrial technician or mechanical contractor familiar with directional control valves and pneumatic or fluid circuit design. Depressurize and de-energize the system fully before removing or installing any valve components. Verify that the selected solenoid coil is compatible with the valve body before assembly, as coils are not supplied with this unit. Consult applicable industry standards and local codes for proper fitting torque, line sizing, and system pressure requirements.
