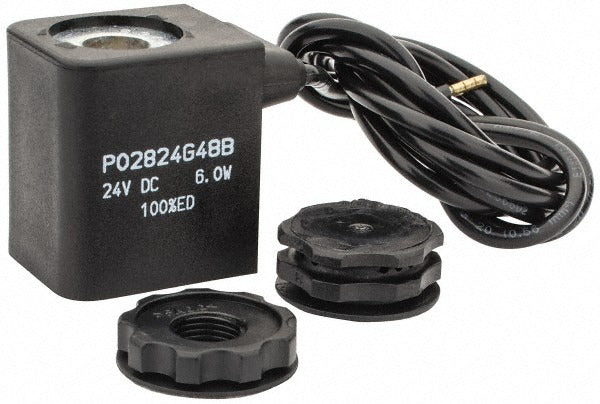

Parker P2FCG448 Solenoid Coil 24 Vdc Class F IP65

Product Description

The PARKER P2FCG448 is a 24 VDC solenoid coil rated at 6.0 watts with a Class F insulation rating and an IP65 enclosure rating. It is designed for use with Parker B Series Viking valves in fluid control and automation systems. The IP65 rating provides protection against dust ingress and low-pressure water jets, making it suitable for demanding industrial environments. Class F insulation supports continuous operation at elevated temperatures. Licensed HVAC technicians, plumbers, and fluid system specialists typically install this coil as part of a valve assembly on process lines, pneumatic circuits, or hydraulic systems where reliable solenoid actuation is required.

The P2FCG448 coil is intended for use with Parker B Series Viking valves in industrial and commercial fluid control applications. It is well suited for installation in process control panels, automated valve assemblies, and systems requiring a compact low-wattage solenoid coil operating on a 24 VDC control circuit. Its sealed IP65 enclosure makes it appropriate for wash-down areas or locations with moderate moisture exposure.

Key Features

• 24 VDC operating voltage for compatibility with standard low-voltage control circuits
• 6.0-watt power draw for efficient, low-heat operation
• Class F insulation rating supports higher continuous operating temperatures
• IP65 enclosure rating provides dust-tight and water-jet-resistant protection
• Designed for direct use with Parker B Series Viking valves

Compatibility

Designed for use with Parker B Series Viking valves as specified by the manufacturer. Verify valve model and coil interface dimensions before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with solenoid valve assemblies and low-voltage control wiring. De-energize the control circuit and isolate the fluid system before removing or installing the coil. Ensure the coil is fully seated on the valve body and that the retaining nut is secured to prevent coil vibration or misalignment. Consult applicable electrical codes and the valve manufacturer documentation for wiring and mounting requirements.
