Parker NV105C-6 3/8 compxcomp brass needle

Product Description

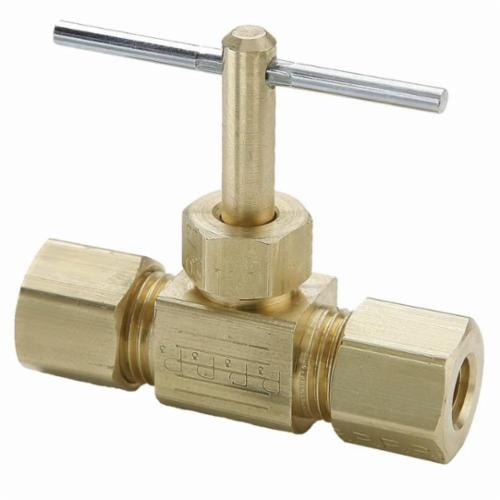

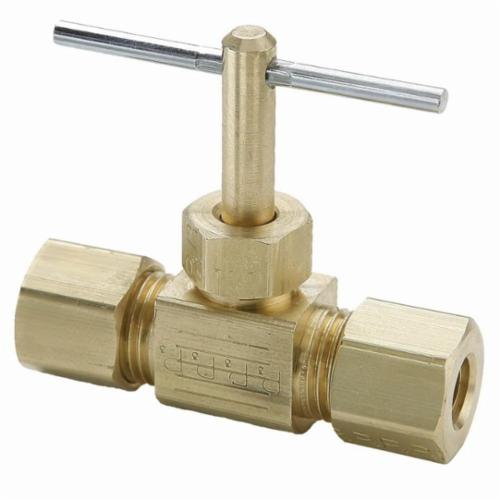

The PARKER NV105C-6 Needle Valve is an all-brass flow control component designed for applications requiring precise flow maintenance with minimal variance. It features a straight body design with a 3/8 inch pipe and tube size, utilizing a compression to compression connection. The valve is constructed with a brass body and stem, complemented by a zinc-plated steel handle. It is suitable for temperatures ranging from -45 to 250 degrees F.

• Straight design with brass body and stem for durability.
• 3/8 inch pipe and tube size with compression to compression connection.
• Temperature rating from -45 to 250 degrees F for versatile use.

Product Highlights

All-brass construction with metal-to-metal seats ensures precise flow control and minimal variance.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: NV105C-6
• Country of Origin: United States

Technical Specifications

• MPN: NV105C-6
• Brand: PARKER
• Type: Needle Valve
• Pipe Size: 3/8 in
• Stem Type: Brass
• Tube Size: 3/8 in
• Connection Type: Compression to Compression
• Temperature Rating: -45 Degrees to 250 Degrees F
• Body Material: Brass
• Fitting Style: Straight
• Handle Material: Zinc Plated Steel
• Connection 1 Style: Compression
• Connection 2 Style: Compression
• Connection 1 Tube O.D.: 3/8
• Connection 2 Tube O.D.: 3/8
• Fitting Shape: In Line
