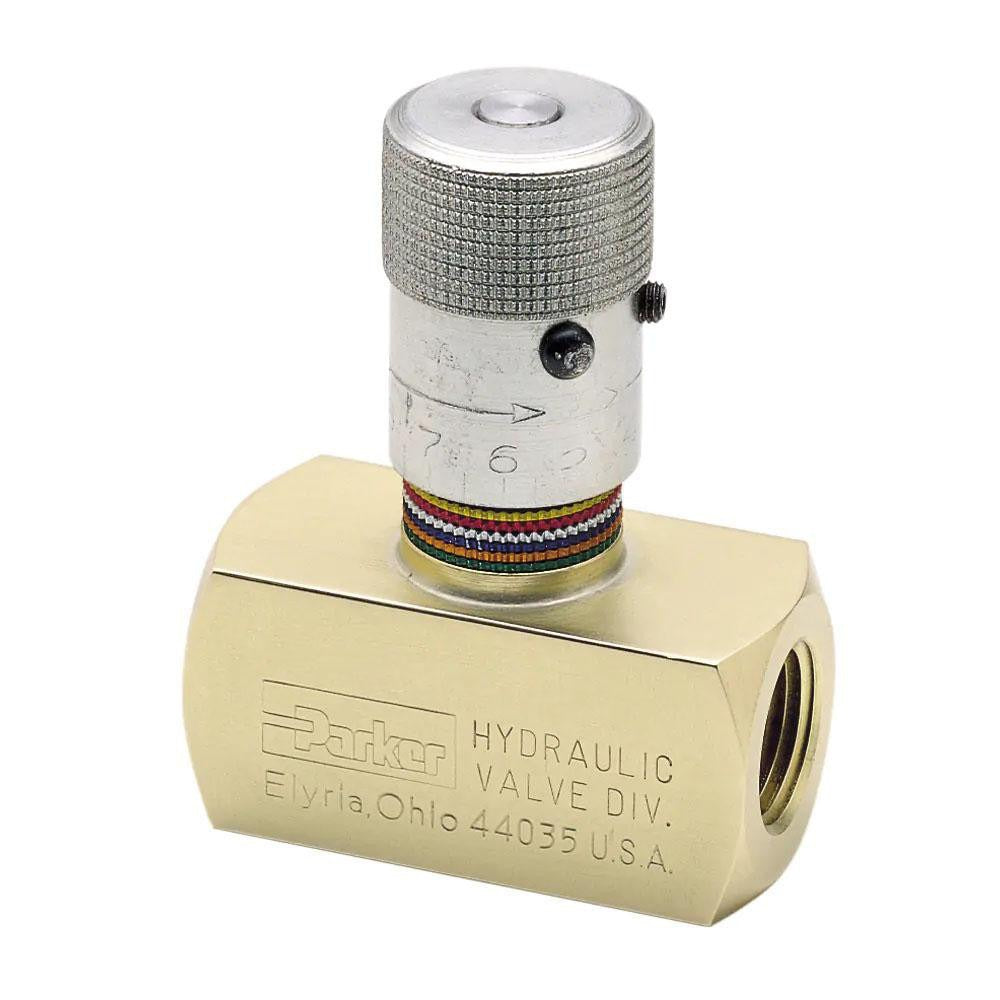

Parker N620S Hydraulic Control Valve 5 Gpm 5000 Psi

Product Description

The PARKER N620S is a hydraulic control valve designed to regulate flow in high-pressure hydraulic circuits. Rated for up to 5,000 psi maximum working pressure and a maximum flow rate of 5 GPM, it handles demanding industrial and mobile hydraulic applications. The valve body is machined from steel and features a 9/16-18 UNF threaded inlet. A knob-style handle provides direct manual control of flow. At 2.38 inches overall length and 0.81 inches overall width, the N620S is compact enough for tight plumbing configurations. Nitrile seals provide compatibility with standard petroleum-based hydraulic fluids. The unit weighs 0.5 pounds. Licensed hydraulic system technicians and industrial maintenance professionals are the typical installers.

The N620S suits residential and light commercial hydraulic power units, mobile equipment hydraulic circuits, and stationary machinery requiring manual flow control. Typical installations include equipment where an operator needs to manually adjust actuator speed or limit flow to a specific circuit branch. The 9/16-18 UNF thread is a common SAE straight thread fitting standard, making this valve compatible with a wide range of hydraulic manifolds, fittings, and hose assemblies that share the same thread specification.

Key Features

• 5,000 psi maximum working pressure for high-pressure hydraulic circuits
• 5 GPM maximum flow rate suitable for light-to-medium hydraulic loads
• 9/16-18 UNF straight thread inlet for broad fitting compatibility
• Steel body construction for durability in hydraulic service environments
• Nitrile seals compatible with standard petroleum-based hydraulic fluids
• Knob handle for direct manual flow adjustment
• Compact at 2.38 inches overall length and 0.81 inches overall width

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic control valve for hydraulic circuits using 9/16-18 UNF straight thread connections rated to 5,000 psi and 5 GPM or below.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with high-pressure hydraulic systems. Depressurize and de-energize the hydraulic circuit completely before removing or installing any valve component. Verify that all mating fittings share the 9/16-18 UNF thread standard and that system pressure and flow ratings do not exceed the valve specifications. Follow applicable industry standards and equipment manufacturer guidelines for torque and fluid compatibility when completing the installation.
