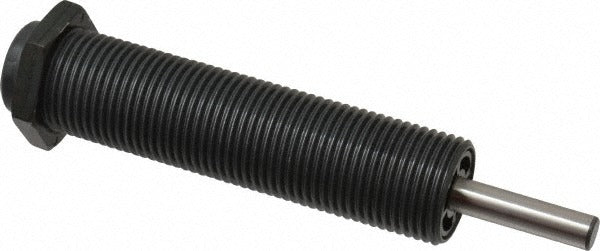

Parker MC600H2 Male Button Shock Absorber 1in Stroke

Product Description

The PARKER MC600H2 is a male button shock absorber designed to decelerate moving loads and reduce impact in industrial automation and motion control applications. With a 0.31-inch rod diameter and 0.87-inch outside diameter, this compact unit delivers a 1-inch stroke through a 1-12 threaded body. The stainless steel rod and black oxide steel body provide corrosion resistance and durability in factory environments. Overall length is 5.58 inches and the unit weighs 0.57 pounds. Licensed HVAC, automation, and mechanical technicians commonly specify this type of shock absorber when building or servicing pneumatic or electromechanical positioning systems.

This shock absorber suits industrial and light automation installations where controlled deceleration of reciprocating or linear motion components is required. The 1-12 thread size allows direct mounting into standard threaded bores or adjustable brackets. The male button end style provides a low-profile contact point for actuator rods, slides, and similar moving assemblies. Operating temperature range of 32 degrees F to 150 degrees F makes it appropriate for standard indoor industrial environments.

Key Features

• Male button absorber type for low-profile actuator contact
• Stainless steel rod for corrosion resistance in demanding environments
• Black oxide steel body for durability and surface protection
• 1-inch stroke length with 1-12 thread for direct threaded installation
• Compact 0.87-inch outside diameter fits tight mounting clearances
• Rated for operating temperatures from 32 degrees F to 150 degrees F

Compatibility

Designed as an OEM-style replacement or direct-install shock absorber for industrial automation systems requiring a 1-12 threaded male button unit with a 0.31-inch rod diameter and 1-inch stroke.

Installation Notes

Installation is typically performed by a qualified mechanical or automation technician. De-energize all pneumatic, hydraulic, or electrical systems and relieve pressure before servicing or replacing shock absorbers in a motion control assembly. Use appropriate thread sealant or locking compound as required by the application, and verify thread engagement depth against the mounting specification before returning the system to service.
