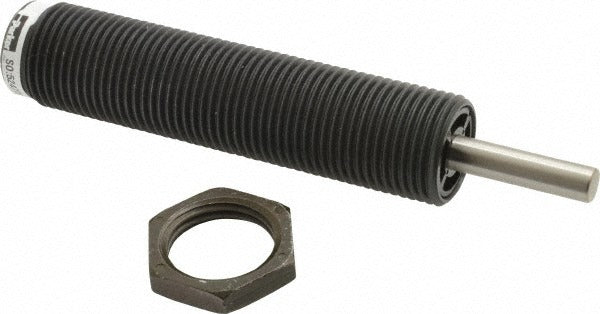

Parker MC600H Male Button Shock Absorber 1in Stroke

Product Description

The PARKER MC600H is a male button shock absorber designed to decelerate moving loads and absorb kinetic energy in industrial automation and motion control systems. The rod measures 0.31 inches in diameter and the body measures 0.87 inches in outside diameter, with a 1 inch stroke and a 1-12 thread size for secure mounting. Overall length is 5.58 inches. The rod is stainless steel and the body is steel with a black oxide finish. This component is installed by mechanical and industrial maintenance technicians on linear actuator assemblies, cylinder end-of-stroke applications, and machine guarding systems.

The MC600H suits light-duty industrial applications where controlled deceleration is needed at the end of a linear travel path. Typical installs include pneumatic cylinder cushioning, slide table stops, and moving carriage deceleration on automated assembly equipment. The male button nose style allows direct contact with the moving load without a separate striker. Operating temperature range is 32 degrees F to 150 degrees F, making this unit appropriate for standard indoor industrial environments.

Key Features

• Male button absorber type for direct load contact without a separate striker plate
• Stainless steel rod for corrosion resistance in industrial environments
• Steel body with black oxide finish for durability
• 1 inch stroke length for controlled end-of-travel deceleration
• 1-12 thread size for straightforward threaded mounting
• Operating range of 32 degrees F to 150 degrees F

Compatibility

Designed as an OEM-style replacement or direct-install shock absorber for industrial linear motion systems requiring a male button style unit with 1-12 thread mounting and 0.87 inch outside diameter body.

Installation Notes

Installation is performed by qualified mechanical or industrial maintenance technicians. De-energize and lockout-tagout all pneumatic, hydraulic, and electrical energy sources before servicing any motion control component. Verify thread engagement depth and ensure the absorber is fully seated and torqued per the equipment manufacturer specifications. Do not exceed the rated stroke or operating temperature range during service.
