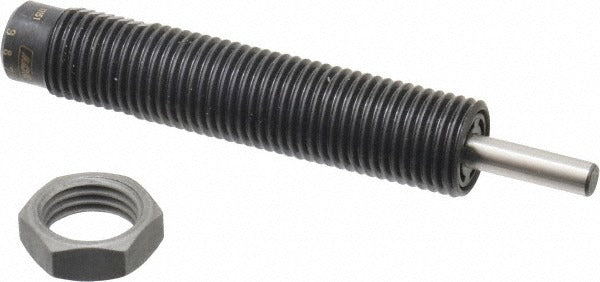

Parker MA150M Male Button Shock Absorber M14 X 1.5

Product Description

The PARKER MA150M is a male button shock absorber designed to control kinetic energy and decelerate moving loads in industrial motion control applications. With a 0.19-inch rod diameter, 0.46-inch outside diameter, and a 0.5-inch stroke length, this compact unit is built for space-constrained mounting situations. The stainless steel rod and steel body with a black oxide finish deliver corrosion resistance and durability in demanding service environments. An M14 x 1.5 threaded body allows straightforward installation into compatible mounting bores or brackets. Overall length is 3.59 inches. Mechanical technicians and automation specialists are the typical installers.

This shock absorber suits light-duty industrial and automation applications where controlled deceleration of actuators, slides, or moving assemblies is required. The male button style makes it well suited for end-of-stroke cushioning on pneumatic cylinders, linear slides, and automated assembly fixtures. It is rated for operating temperatures from 32 degrees F to 150 degrees F, making it appropriate for standard indoor industrial environments. The compact 0.46-inch outside diameter fits tight panel and bracket mounting configurations commonly found in machine tool and material handling equipment.

Key Features

• Male button absorber type for end-of-stroke deceleration in linear motion systems
• Stainless steel rod construction for corrosion resistance in industrial environments
• Steel body with black oxide finish for added durability
• M14 x 1.5 thread for direct mounting into standard threaded bores or brackets
• 0.5-inch stroke length in a compact 0.46-inch outside diameter profile
• Rated for 32 degrees F to 150 degrees F operating temperature range

Compatibility

Designed as an OEM-style replacement or direct-install shock absorber for light-duty industrial linear motion and automation applications requiring an M14 x 1.5 threaded male button configuration.

Installation Notes

Installation is typically performed by qualified mechanical or automation technicians. Depressurize and de-energize the system fully before removing or installing any motion control component. Verify thread engagement is adequate and the mounting bore is clean before installation. Do not exceed the rated operating temperature range during service.
